Product Code: IPR-10G2-HDMI

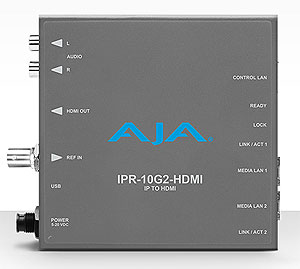

AJA IPR-10G2-HDMI
review

Features

  • SMPTE 2110 audio, video receiver
  • Supports UltraHD up to 30p and HD up to 60p, YCbCr 4:2:2
  • Rugged, fanless design
  • 2x 10 GigE SFP+ cages for media LAN (providing support for "hitless switching) with status light
  • 1x 1 GigE RJ45 socket for control LAN with status light
  • Dedicated HDMI receiver with full size HDMI 1.4b video port
  • Full 10-bit pixel processing pipeline
  • Embedded HDMI audio output (up to eight channels)
  • 2x RCA analog audio output
  • 1x BNC Reference In
  • 1x mini-USB port for initial network configuration with AJA eMini-Setup software
  • Complete control interface on any web browser from a built-in webserver
  • Customizable control with AJA REST API
  • 5-year international warranty and support

IPR-10G2-HDMI provides monitoring of UltraHD and HD SMPTE 2110 signals across 10 GigE to a HDMI ouput.

It receives SMPTE ST 2110 over 10 GigE connectivity, formats the data, including UltraHD or HD video on a full-size HDMI interface. Associated audio from the video stream is extracted, synchronized, and embedded into the HDMI interface and also output on an analog RCA interface.

The IPR-10G2-HDMI features 2x 10 GbE SFP+ cages allowing “hitless switching”, providing redundancy protection for critical distribution and monitoring applications.

The IPR-10G2-HDMI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing basebands environments such as master control, a truck, or an edit suite.

User Control
IPR-10G2-HDMI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates.

- 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
- Web and REST clients supported
- 1x USB 2.0 Mini-B (IEC 62680-1) connector
- AJA eMini-Setup of network parameters

Video formats - (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
Video Quality 10-bit, 4:2:2, uncompressed
Discovery, Registration and Control - NMOS
- Ember Plus (no discovery, control only)
Media Transport Interfaces
- SMPTE ST 2110
  - 2x SFP+ Cages - SFPs not included
- Recommended 10 GigE SFP+ modules:
  - Arista Networks SFP-10G-SR Compatible 10GBASE-SR
  - Fiberstore SFP-10GSR-85 10G SFP+ 850nm
  - Finisar FTLX1471D3BCL (for single mode 1310nm)
  - Mellanox MFM1T02A-SR 850nm 10G

Note: Maximum supported SFP+ power is 500 mWatts per SFP+ cage
Video Input IP
SMPTE ST 2110
- Single channel input
- Dual channel input for hitless switching (based on SMPTE ST 2022-7)
Video Output Digital - 1x HDMI Standard Type A connector
HDMI v1.4b 24/30-bits per pixel, RGB/YUV
Audio Output Digital Up to 8-Channel, HDMI embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Output Analog 2x RCA analog audio
Levels at -10 dBu (nominal)
User Controls
- 1x RJ-45 for 10/100/1000 Base-T Ethernet
Web and REST clients supported
- 1x USB 2.0 Mini-B connector
AJA eMini-Setup of network parameters via local desktop computer
Reference 1x BNC
Analog Color Black or HD tri-level sync
Reference input is terminated into 75 ohms
Size (w x d x h) 5.07" x 0.94" x 5.06" (128.78 x 23.88 x 128.52 mm)
Weight 0.6 lb (0.3 kg)
Power 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
