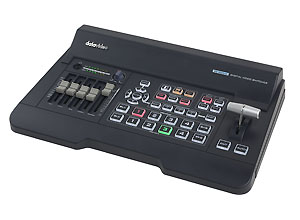

Datavideo SE-500HD 4-Channel HDMI Video Presentation Switcher

Datavideo SE-500HD

Datavideo SE-500HD 4-Channel 1080p HDMI Video Presentation Switcher

Product Code: SE-500HD
Datavideo SE-500HD

review button

• Small HD/SD digital video switcher
• Compact 4 input HDMI switcher with two HDMI outputs
• Supports resolutions up to 1080p
• Designed to allow users to input any camcorder, GoPro, HDMI laptop or tablet

Datavideo SE-500HD HDMI Presentation Switcher

Supports Up to Full HD 1080P (4:4:4, 10-bit)

Scale mixed resolution/standards inputs up to 1080p. 4:4:4 sampling at 10-bit.

Compact but Powerful

SE-500HD's small footprint makes it an ideal portable switcher for any live event productions. Although it's small, HDMI connections support up to 1080p resolution for a high quality video production.

HDMI 1080p switching with advanced features, at a fraction of the cost.
Don't let the SE-500HD fool you with its affordability and compact design.

This 1080p switcher comes loaded with features such as luma key for graphic overlays, split screen for podcast interviews, and PiP for Powerpoint presentations.

Variety of video and audio input/output

The SE-500HD's built-in audio mixer means that you've got everything you need to control your audio input levels.

For most productions, this means that there's no need to buy a separate external audio mixer.

Supports lumakey for titles

With built-in lumakey, user can use PowerPoint to easily create titles by graphic overlays.

User memories

You can save a complex process into a user memory, turning multiple tasks into a one-finger job.

Supports Vertical video multiview

It's an ideal solution for the videos on social media. The vertical video is more favorable while playing on the mobile device.


There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.

Professional 10-bit processing switcher

Providing you the best and professional quality of video processing.

Other Web:

Datavideo SE-500HD 1080p HDMI Switcher

Video Standard Full HD & SD
Video Format 1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz
Video Processing HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4
Input Routable / Crosspoint -
Video Input 4x HDMI
Mix HD & SD Source Yes
Computer Graphic Interface 4 via HDMI
Video Output 2 x HDMI (1 is MV, 1 is PGM)
Down-converted output Yes
Built-In Multi-View Monitoring Out HDMI
Audio Input 1 x Stereo RCA (L/R)
2 x Mono Microphone
Audio Output 1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio Support Input 2 channels, Output 2 channels
Audio Delay Calibration -
A+V Switching Yes
Chromakey -
USK Lumakey
Picture in Picture 1
Logo Insertion -
Still Store -
Effects FTB, Cut, Wipe with border
Transition Preview -
Sync / Reference In/Out Built-in Genlock (internal)
Tally Output 1x D-sub 15pin, dual color
PC Remote Control -
Built-in Audio Mixer Yes, 4 channels
Firmware Update USB
Chassis Unibody
Power DC 12V, 29W
Weight 1.7 kg
Operating Temp. Range 0~40 °C

• 1 x SE-500HD product
• 1 x AD Switch DC 12V with AC Cord
