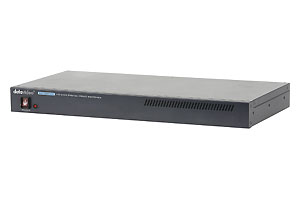

Datavideo SE-1200MU 6-Input Rackmount HD Switcher
Product Code: SE1200MU
Features
- Cutting-edge 6 input HD switcher
- Designed for remote switching and
dual-chromakeying
- Capable of streaming the multi-view
as well as controlling it via ethernet network
- Includes 4 SDI and 2 HDMI inputs
- Supports 1080i and 720p resolutions
with embedded audio
- Features include dual Chromakey,
Lumakey, DSK, PIP, still stores, audio delay, tally and an
RJ-45/RS-232 remote control interface
|
|
|
Datavideo SE-1200MU HD video
switcher enables you to switch
seamlessly between video sources and
blend high-quality digital content
on the fly.
SE-1200MU a
small, portable computer controlled
1RU rack mountable switcher. It
features a 6-Channel HD video input
that is incredibly reliable, unlike
PC-based systems that are prone to
crashing mid production.
SE-1200MU streams out multi-view
screen video in real-time to a
control PC for monitoring and
control remotely. It is designed to
be fully controlled from any Windows
Laptop / PC with the included
SE-1200 software control panel, or
the RMC-260 control panel.
SE-1200MU includes four HD-SDI and
two HDMI inputs and an internal
frame synchronizer so you can use
sources without gen-lock such as
consumer HDMI cameras or even
computers for live PowerPoint™
presentations.
Two assignable
HD-SDI and two HDMI outputs for
connecting an HD recorder, monitor
and a streaming encoder, plus two
Balanced XLR audio inputs for
connecting an external audio mixers.
Other features include chromakey,
lumakey, DSK, PIP, still stores,
audio delay, tally and RJ-45/RS-232
remote control interface.
Highlights:
- 6 video
inputs ( HD-SDI x 4 + HDMI x 2)
-
Frame Sync on each input
-
Flexible Mix/Effects Processor with
• 2 Upstream Keyers, supporting
Chroma Key & Linear/Luma Key
• 2
DSK, supporting Linear & Luma Key
Modes
• 1 PIP (assignable to any
of the 4 keyers
• Wipe Generator:
32 Wipe Patterns, including Circle &
Heart | Borders & Softness Control
• Wipe, Mix & Cut Transitions
•
Full M/E Preview function
- Any
Input (1-6) can be used as a Frame
store
- Assignable Outputs
•
Each HD-SDI output can be switched
in the Menu as:
• PROGRAM (w/
DSK)
• Clean PROGRAM (w/o DSK)
• Clean PREVIEW (w/o DSK)
•
MULTISCREEN
• Input 1-6
- XPT
(Cross Point Assignment)
- PC
control
- Control Switcher via
USB / Laptop keyboard
- RMC-260
optional - SE-1200MU Digital Video
Switcher remote controller
-
Remote streaming of Multi view out
using built-in Motion JPEG Streaming
processor
- Tally output
- GPI
output
- 1U rack mount (with rack
ears)
|
|
Video |
|
Inputs: |
HDMI x2
SDI x4 |
|
Output: |
SDI x2
HDMI #1
(Multi-view Display)
HDMI #2 (For Debug Only)
**Assignable Outputs |
|
Audio |
|
Inputs: |
XLR x2
**Embedded
Audio Support |
|
What's in the Box: |
SE-1200 Unit
Quick
Start Guide
Accessory
List |
|
|
