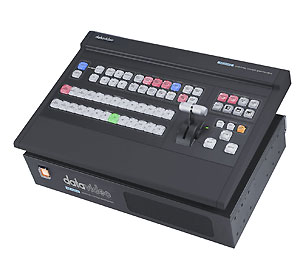

Datavideo SE-3200 HD 12-Channel Digital Video Switcher

Datavideo SE-3200 Completely Customizable 12 input full HD production switcher

Datavideo SE-3200 is top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

Designed for Easy Installation

SE-3200's base unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher.

Professional Switcher for Studio and Outdoor Broadcast Van

The SE-3200 is a lightweight switcher solution with the main unit mountable on the 19 inch rack. The control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van.

The SE-3200 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.

The SE-3200 is designed for large scale event production. The switcher equips with intuitive and reliable physical buttons.

Supports full HD 1080P with scaling on each available input

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.

Create stunning video effects with advanced features

Advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.

Built-in Stinger Transitions and backgrounds

Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.

Included CG Title Creator

All 3200 series switchers have built-in support for Datavideo CG software.

This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Custom Multiview layout & dual Multiview output

Connect up to two displays to all 3200 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!

4 Chromakeyers for a complete virtual studio experience

Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.

Plug-and-Play

There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.

Other Web:

Datavideo SE-3200 12-Channel HD Switcher

Video Standard	Full HD
Video Format	1080p 50/59.94/60Hz, 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz,
Video Processing	SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4
Input Routable / Crosspoint	All 12, repeatable
Video Input	8x SDI, 4x HDMI
Mix HD & SD Source	N/A
Computer Graphic Interface	4 via HDMI
Video Output	6x SDI assignable: Multiview, PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12 3x HDMI assignable: Multiview, PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12
Down-converted output	N/A
Built-In Multi-View Monitoring Out	HDMI
Audio Input	4x Balanced XLR
Audio Output	2x Balanced XLR
Embedded Audio Support	Embedded 4-CH Audio Output
Audio Delay Calibration	up to 16 Fields or 8 Frames per Channel
A+V Switching	Yes
Chromakey	4
USK	4x USK support Chromakey & Linear/ Luma Key
DSK	2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture	8 (4x PIP, 4x Flex Source)
Logo Insertion	2
Still Store	500
Effects	DVE, FTB, Cut, 32 Wipe with border
Transition Preview	Full Transitions Preview
Sync / Reference In/Out	Built-in Genlock Support external sync with loop thru
Tally Output	1x D-sub 25pin, Dual Color
PC Remote Control	Via Ethernet (free Window software) or RS-422 / RS-232
Built-in Audio Mixer	N/A
Special Features	4 User Memory Preset Free Virtual Set and Stinger Transition included
Chassis	2 units, 2RU Rack-Mount Mainframe
Power	DC 12V 69W

• 1 x SE-3200 Main Unit
• 1 x SE-3200 Control Board
• 2 x AD Switch DC 12V
• 1 x AC Cord
• 1 x DB9P TO DB9P Cable
• 12 x Screw
• 2 x 2U Ear Rack
