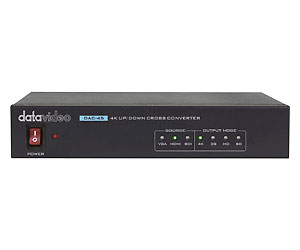

Datavideo DAC-45 4K Up/Down Cross Converter

Datavideo DAC-45 Up/Down Cross Converter

4K Up Conversion

With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.

External audio embedding.

RCA inputs allow audio to be embedded to the output of the video signal.

Supports 3G-SDI Level A/B

With the 3G-SDI system, it supports both 3G-SDI Level A/B input.

Wide range conversion for great compatibility

Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion.

Built-in De-interlacer and Interlacer (I/P conversion)

Supports I/P conversion to avoid the dense misaligned horizontal lines on the video.

Reference input (Black Burst and Tri-Level Sync.)

Supports Black Burst and Tri-Level Sync for all inputs.

Adjustment of HDMI color space

The DAC CENTER software allows adjustment of HDMI color space. Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workflow

Easy installation on the rack

Available RMK-1 rack allows two DAC-45 to be racketed in a 19” rack.

Other Web:

Datavideo DAC-45 Up/Down Cross Converter

Conversion	VGA/HDMI/SDI to 4K HDMI/3G-SDI Multi-format Up/Down/Cross
Video Inputs	1x VGA, 1x HDMI, 1x HD/SD-SDI 1x Reference Input
Loop Through	----
Video Outputs	1x SDI, 1x HDMI
Audio Inputs	2x RCA(Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded
Audio Outputs	SDI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection	----
Audio Gain	----
Supported Video Input Formats	2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
Output Resolutions	2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i
Equalizer	Yes
Reclock	Yes
SDI Cable Drive	Yes
Updates and Configuration	Mini USB x 1
Dimension (LxWxH)	220 x 143 x 42 mm
Weight	1 kg
Operating Temp. Range	0~40 °C
Power	DC 12V, 9.4W

• 1 x DAC-45
• 1 x AD Switch DC 12V
