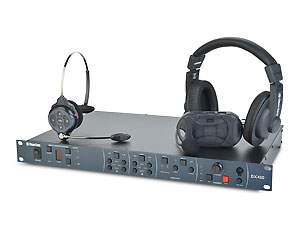

Clear-com HME-DX410 Wireless Intercom System
Clear-com HME-DX410 is a two-channel intercom
system that operates in the 2.4 GHz wireless band with 2-wire and 4-wire
bridging, and 2-wire auto-nulling.
The new system which features 7
kHz wideband audio for exceptional audio clarity is the first DX Series
wireless intercom system to offer this level of audio frequency range. Easy
to set up and configure, the DX410 also features lightweight yet rugged
beltpacks and All-in-One wireless headsets.
Each BS410 base station
can support up to 15 registered BP410 wireless beltpacks and/or WH410
All-in-One wireless headsets. In a single-channel operation, any four
beltpack users can engage in simultaneous, full-duplex (talk-listen)
communication, while three users may be in full-duplex mode in a
dual-channel operation. The BP410 and WH410 have rugged, reinforced casings
and long-lasting keypads with no mechanical switch, proven to withstand
harsh production environments. Fast charging Li-Ion batteries takes only 2.5
hours to provide up to 12 hours of battery life.
The DX410 system
features 7 kHz wideband audio. The high quality audio expands audio range
and increases intelligibility in high RF environments so even soft whispers
can be heard clearly. With an upgraded radio and a lost packet concealment
capability, the DX410 delivers an improved experience in performance, range
and sound.
DX410 also features 2-wire and 4-wire bridging and 2-wire
auto-nulling. The bridging capability allows the option for combining the
2-wire and 4-wire ports together on either channel A or B, allowing
operators to use a 4-wire out to send all the audio to a mixer, matrix
intercom or other audio source. 2-wire auto-nulling enables fast and
accurate integration with Clear-Com or TW wired partyline systems.
The DX410 uses a frequency hopping system (FHSS), and offers
spectrum-friendly and Adaptive Frequency Hopping (AFH) modes, to avoid
interference with Wi-Fi, while operating in the 2.4GHz band means that DX410
does not require radio licensing for use.
• Talk with Confidence
With the 2.4GHz operating
frequency range – low band, high band, or full band – users can avoid
frequency conflicts.
• Exceptional Wireless Performance
Triple diversity operation (space, time and frequency) provides
redundant, reliable communication even for extreme, multi-path
situations.
• Made to Last
All the components
of the DX system are designed to last, with high quality components and
rigorous testing for durability.
• Interference-free
Communications
Frequency Hopping System (FHSS),
spectrum-friendly and Adaptive Frequency Hopping (AHF) modes helps users
avoid Wi-Fi interference.
|
