Clear-Com HME DMX121 Intercom |
 |
|

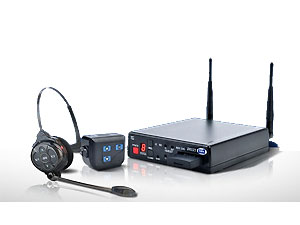

The HME DX121 system is comprised of the BS121 base station, BP200 beltpack or WH200 wireless headset, and compatible headsets. The DX121 supports 1
full-duplex or 4 push-to-transmit shared beltpacks, while providing interface option to 4-wire intercom systems only. It is a highly portable and versatile system that can be plugged directly into the
headset jack of any intercom station or into a four-wire connection of a device such as a digital matrix intercom. The 2.4 GHz frequency-hopping, Spectrum Friendly technology allows up to eight
DX121's to be used together to support multiple channel applications. The DX121 can be used to support wireless channels for theatrical and live crew events, broadcast control room
operators, technical support crews and for connecting remote staff at large venues.
|
Highlights of HME DX121: |
|
* Headset Connector Connectivity
* Four-Wire Connectivity
* Built-In Battery Charger
* Digital Frequency-Hopping Spread Spectrum (FHSS)
* Power Backup with Fully Charged Battery in Charger Port
* HME Spectrum Friendly Technology
|
| |
 |
 |
Discontinued |
| BS-121 |
BP-200 |
WH-200 |
|
|
|
| Wireless Headset ComLink "Communicator" |
|
Discontinued |
 |
 |
| WS-200 |
AC40A |
BAT41 |
|
|
|
| Battery Li-Ion Rechargeable |
|
 |
 |
 |
| HS15 |
HS16 |
MD-XLR Headset Adapter |
| Single-muff headset with noise canceling microphone |
|
| Single-muff, lightweight headset with directional microphone |
|
| MD-XLR Headset Adapter for using terminated dynamic headsets |
|
 |
|
|
| Belt-pack Pouch |
|
|
| Pouch for HME DX Series Beltpacks |
|
|
| |
|
|
| Customer May wish to select the following bundles |
| Part Number |
System Configuration |
| CZ11462 |
DX121 system w/ HS15 headset:
BS121 license-free base station with HS-XLR4F Interface cable,
2 antennas, 115/230 VAC power supply, 115 VAC power cord,
BP200 Beltpack with 2 BAT41 batteries and pouch;
1 HS15 Single Muff Noise cancelling Headset, manual |
| CZ11463 |
DX121 system w/ HS16 headset:
BS121 license-free base station with HS-XLR4F Interface cable,
2 antennas, 115/230 VAC power supply, 115VAC power cord,
BP200 Beltpack with 2 BAT41 batteries and pouch
1 HS16 Single Muff Lightweight Headset, manual |
| CZ11464 |
DX121 system w/ WH200
headset:
BS121 license-free base station with HS-XLR4F Interface cable,
2 antennas, 115/230 VAC power supply, 115VAC power cord,
WH200 All-In-One-Wireless Headset with 2 BAT41 batteries,
manual |
| CZ11465 |
DX121 system without headsets:
BS121 license-free base station with HS-XLR4F Interface cable,
2 antennas, 115/230 VAC power supply, 115VAC power cord,
1 BP200 Beltpack with 2 BAT41 batteries and pouch, manual
*No headset is included with this system* |
|
|
|
