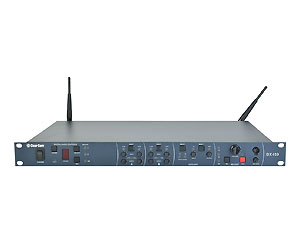

Clear-com BS410 Base Station for DX410 Digital
Wireless
Intercom
Clear-com BS410 is the base station for the DX410
wireless system, used with wireless BP410 beltpacks. A single DX410 base
station supports up to 15 registered BP410 beltpacks and/or WH410 all-in-one
wireless headsets. Two-wire auto-nulling enables fast and accurate
integration with Clear-Com and RTS wired partyline systems.
• Audio
Channels: 2 audio channels
Capacity: Up to 15 BP410 and/or WH410 per base station
Full-Duplex: Yes. Single-channel = 4 in simultaneous full-duplex.
Dual-channel = 3 in simultaneous full-duplex. Radio Frequency Range:
2400 – 2483.5 MHz
Audio Frequency: 200 Hz – 7kHz
4-wire
I/O: RJ45, 600 Ohms balanced, level adjustable, simultaneous operation
with 2-wire
2-wire I/O: XLR-3M, XLR-3F, externally-switchable RTS
or Clear-Com, 200 Ohms, level adjustable, null adjustable to 50dB
attenuation, typical
Aux Input: XLR-3F with ¼” (6.35mm) combo
jack, 600 Ohms balanced, level adjustable
Aux Output: XLR-3M, 600
Ohms balanced, level adjustable
Headset Connector: 4-pin
mini-DIN, Electret microphone
Headset Output: 200mW into 32 Ohms
Antenna Type: External ½-wave dipole (R-TNC connector), RX/TX
horizontal/vertical diversity
System Distortion: <2%
Communication Security: dual-slot diversity
• Transmitter
Type: Frequency Hopping, Spread Spectrum (FHSS)
Transmit
Power: 100mW burst
Modulation Type: Gaussian filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC
and ETSI specifications over temperature
• Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF Sensitivity:
<-90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion:
<2%
• Power Requirements
100 – 240V AC,
50 – 60Hz or 12 – 14V DC
• Environmental
Temperature: +32° - +122°F (0° - +50°C)
• Dimensions
1.75 x 19.0 x 17.13in (HxWxD)
(44 x 483 x 435mm)
• Weight
9lbs (4.1kg)
