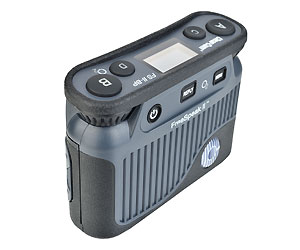

Clear-com FSII-BP19-O2 FreeSpeak II 1.9GHz Beltpack
Clear-com FSII-BP24-O2 2.4GHz beltpack is
specifically designed to work in Hyperbaric chambers safely, operating at
atmospheric pressures of 5.1 atm, 517 kPa, or 75 psi with a change of +/- 26
psi per minute without damage.
Operation
The FSII-BP24-O2 can connect to the FreeSpeak II
Base Station, FreeSpeak Edge Base Station, Arcadia Central Station or to the
Eclipse HX matrices using the E-IPAHX interface card. FSII-BP24-O2 users can
roam seamlessly between FSII-TCVR-24 transceivers over wide areas. The
“Listen Again” feature allows users to replay earlier commands, eliminating
the need to repeat communication or disturb productions. Volume Swap allows
for independent level control on channels A, B,
Increase System Size
The FSII-BP24-O2 can be used interchangeably with
any other FreeSpeak II or FreeSpeak Edge beltpack on the same system.
Depending on what system you connect to, you can increase the quantities of
beltpack users that operate on a single system
Durability
The FSII-BP24-O2 is IP53 rated for water and dust
protection with special components to withstand depths of 125 ft (38 m). For
better grip and protection, the beltpack has a rubberized over-mold to
protect it from the most rugged environments.
Battery
FSII-BP24-O2 beltpack
does not support the AC60 battery like the FSII-BP19 and FSII-BP24
beltpacks. Because this beltpack is used in high-pressure environments, the
FSII-BP24-O2 will only support the use of three AA alkaline or rechargeable
Nickel Metal Hydride batteries. Beltpack battery level settings will
accommodate to the use of these batteries.
• Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station,
E-IPA-HX card, and FSII splitter hardware
• Designed to work at
atmospheric pressure up to 75 psi
• Typical indoor range: 300 ft (90 m),
outdoor range: 800 ft (240 m)
• 1.9 and 2.4 GHz beltpacks operate on a
single system
• Up to 65 - 90 beltpacks on a single system
• Encoder
Volume Swap between A&C and B&D
• "Listen Again" message replay
•
Simple 2-channel partyline operation to 5-channel intercom on the same
beltpack
• Over-the-air beltpack registration
• XLR-4M headset
connector
• IP53 rating for wet and dusty conditions
• Built-in
flashlight
• Uses AA alkaline or rechargeable Nickel Metal Hydride
batteries
Audio
• Audio Bandwidth: 200Hz-7.5KHz
•
No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2
dedicated rotaries, 3 with menu), 2 controls and a main volume
•
Mode of Operation: Full duplex on all routes
• Level/Talk
Controls: 4 pushbuttons, a reply button and 2 rotary controls
•
Enter/Answer-Back Button: 1
Frequency Spectrum
USA, Canada, Mexico: 1920-1930 MHz (5 Channels)
Transceiver
Range Output Power: 100mW
EU, Russia, Singapore, Hong Kong,
Australia, New Zealand, South Africa: 1880-1900 MHz (5 Channels)
Transceiver Range Output Power: 250mW
Japan: 1893-1906 MHz (2
Channels)
Transceiver Range Output Power: 250mW
Argentina,
Bahamas: 1910 MHz-1930 MHz (10 Channels)
Transceiver Range Output
Power: 250mW
Brazil: 1910 MHz-1930 MHz (5 Channels)
Transceiver Range Output Power: 250mW
Chile: 1910 MHz-1930 MHz (5
Channels)
Transceiver Range Output Power: 70mW
Taiwan:
1880–1895 MHz (8 Channels)
Transceiver Range Output Power: 250mW
Connectors
• Headset Connector: 4-pin male
• Microphone Type: Electret and Dynamic, selectable in beltpack menu
• Headset Limiter: Selectable from beltpack menu
Power
• Modulation: GFSK, TDMA frame 10ms Full and Long
slot
• Output power: (EU/Russia) 10dBm average, (US) 18-20dBm
• Range: Typical indoor range 300ft (90m), outdoor range 800ft
(240m)
• Battery: 3 AA alkaline or Nickel Metal Hydride
•
Battery Life: 9+ hours
Environmental
• IP53 water and dust resistance
• Operating: 32º-125ºF
(0º-50ºC)
• Storage: 32º-150ºF (0º-70ºC)
• Humidity:
Between 20% and 90%, Non-Condensing Atmospheric pressures of 5.1 atm or
75 psi
Dimensions
• Tapered design at
largest points
3.75 x 5 x 1.5 in (HxWxD)
(97 x 130 x 45mm)
Weight
• 9.0 oz (0.25 kg) including
batteries
