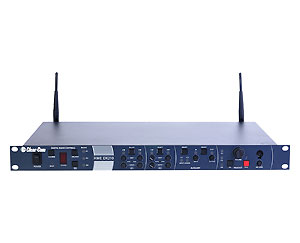

Clear-com BS-210 Base Station for DX210 Intercom

Clear-com BS-210

Clear-com BS-210 DX210 Intercom Base Station

Product Code: BS-210
Clear-Com BS-210

review button

Features
• 2-channels of communications
• 2.4GHz license-free operation
• Supports 4 full-duplex or 11 half-duplex beltpacks or all-in-one headsets
• Link up to 4 co-located base stations

Clear-com BS-210 Base Station for HME DX210 Intercom

Clear-com BS210 is compatible with the DX210 digital wireless system.

Highlights:

• Expandable system: enables up to four synchronized co-located base stations to be used together for a total of 44 COMMUNICATORs with up to 16 in hands-free, full-duplex mode.

• Wired Intercom Input/Output interfaces: make DX210 compatible with existing 2-wire partyline or 4-wire matrix systems provided by Clear-Com or RTS.

· Wireless ISO Talk-around: allows all wireless users on the same base station to talk with each other, isolated from either two- or four-wire intercom channel. ISO function can be restricted to specific users.

• Digital Auto “Nulling” (Front Panel Access): provides the deepest hybrid balancing in the industry and is flat across the entire speech bandwidth. The DX210 is equipped with an auto “nulling circuit” to easily null 2-wire connections and eliminate echo automatically.

• Two separate 2-wire/4-wire channels: assignable AUX IN for program input plus AUX OUT that can be used to direct wireless ISO to Stage Announce (SA).

• Triple diversity (space, time and frequency): operation for extreme multi-path situation provides redundant communication that offers the most dependable system available. The strongest signal is selected from two different antennas, transmitted and received at two different times, on two different frequencies. The vertical and horizontal diversity antenna system is specially designed to prevent dropouts and provides the strongest audio signal possible.

• Digital 64 bits of encryption: for secure communications and Frequency Hopping Spread Spectrum (FHSS) technology prevents unauthorized personnel from hearing or interrupting your communication.

• Relay (GPIO) actuation with ISO function: from either base station or any one of the appropriately configured COMMUNICATORs.

• Selective headset connector: allows the base station operator direct access to the IC channel, AUX IN /OUT, as well as COMMUNICATORs.

• Backward compatible: with previous HME DX200 COMMUNICATORs, (BP200) beltpacks are automatically assigned to channel 1 audio and work seamlessly with the DX210.

• 2-Wire loop-through connectors: allows for connection to multiple external audio devices

•  Feedback protection for un-terminated 2-wire channels: automatically eliminates feedback when connecting DX210 base station to 2-wire systems.

TX & RX Antenna: ½-Wave, Dual Diversity Dipole

4-Wire I/O: RJ-45, 600O Balanced, Level Adjustable, Simultaneous Operation with 2-Wire (x2)

2-Wire I/O: XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200O, Level Adjustable, Null Adjustable

Auxiliary Input: XLR-3F/¼” Phone Combo Jack, 600O Balanced, Level Adjustable

Auxiliary Output: XLR-3M, 600O Balanced, Level Adjustable

Headset I/O: N/A

Headset Connector: 4-Pin Mini-DIN

Headset Output: 250mW into 32O

Size: 19 x 1.72 x 13.50in (1-RU) (48.26 x 4.37 x 34.29cm)

Weight: 9.0lb (4.1kg)

Power Requirements: 100-240V AC, 50-60Hz or 12-14V DC
