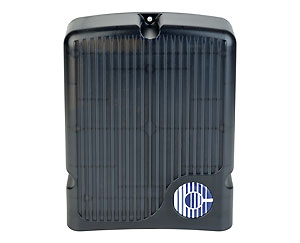

Clear-com FSII-TCVR-19 FreeSpeak II Transceiver
1.9GHz
Clear-com FSII-TCVR-19 is an active transceiver
antenna for the FSII-BP19 beltpacks. The
antenna can be locally powered
or powered via the FSII base station or matrix on shorter connections (less
than 1000 ft). The FSII-TCVR-19 has a mount for wall or microphone stand. A
green status light is visible from either mounting orientations. When mixed
with FSII-TCVR-24 antennas, a single radio space can support up to 65-90
FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.
The FSII-TCVR-19 is IP53
rated for wet weather or dusty conditions making them ideal for outdoor
productions.
• Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station,
E-IPA-HX card, and FSII splitter hardware
• Uses existing FSII base,
E-QUE-HX cards, and FSII splitter hardware
• Supports 5 FSII-BP19
beltpacks per FSII-TCVR-19 transceiver
• Supports systems with up to
65-90 beltpacks when mixed with FSII-24-TCVRs
• Green LED status
indicator on top and bottom
• Mic stand or wall mount orientation (metric
and imperial threads)
• IP53 rating for wet and dusty conditions
• Frequency Spectrum
USA, Canada, Mexico:
1920-1930MHz (10 Channels)
Transceiver Range Output Power: 100mW
EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New
Zealand, South Africa: 1880-1900MHz (10 Channels)
Japan:
1893-1906MHz (2 Channels)
Transceiver Range Output Power: 250mW
Argentina: 1910-1930MHz (10 Channels)
Transceiver Range
Output Power: 250mW
Brazil: 1910-1920MHz (10 Channels)
Transceiver Range Output Power: 250mW
Chile: 1910-1930MHz (10
Channels)
Transceiver Range Output Power: 70mW
Taiwan:
1880-1895MHz (8 Channels)
Transceiver Range Output Power: 250mW
Modulation: GFSK, TDMA frame 10ms Full and Long slot
Output:
(EU/Russia) 10dBm average, (US): 18-20dBm
Environmental
IP53 water and dust resistance
Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%,
Non-Condensing
Dimensions
6.75 x 5.5 x
2in (HxWxD)
(173 x 134 x 52mm)
Weight
15.9oz (0.45kg)
|
