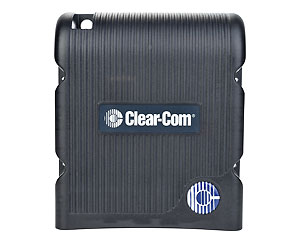

Clear-com FSII-TCVR-IP-19 FreeSpeak II 1.9GHz IP
Transceiver Antenna
Clear-com FSII-TVCR-IP-19 is an active transceiver
antenna for the FSII-BP19 beltpacks. The transceiver connects to the
Eclipse® HX matrix system via the E-IPA-HX interface card. Each transceiver
can support up to 10 FSII-BP19 beltpacks. When supported with the E-IPA
card, up to 50 1.9 GHz beltpacks (in North America or 64 beltpacks in EU
countries)
The FSII-TCVR-IP-19 allows transceivers and beltpacks to
be placed anywhere there is an AES67 IP network connection. The
FSII-TCVR-IP-19 connects to the E-IPA-HX card via copper or fiber over an
AES67 compliant network switch. Transceivers can be connected by copper (2
RJ45’s) or fiber (1 high speed SFP cages).
The FSII-TCVR-IP-19 is
IP53 rated for water and dust resistance. The transceiver has a mount for
wall or microphone stand. A green status light is visible from either
mounting orientations.
• Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX
card
• Requires E-IPA-HX card and an Eclipse HX frame (not available for
FSII-BASE-II)
• For use with FreeSpeak II 1.9 GHz only
• Operates over
IP on an AES67 compatible network
• Supports 10 FSII 1.9GHz beltpacks per
transceiver
• Up to 64 transceivers supported on Eclipse HX matrix system
• Ethercon RJ45 network connections (2)
• High speed fiber SFP cages (2)
• Power-over-Ethernet (PoE) up to 300 ft (91 m)
• Green LED status
indicator on top and bottom
• Mic stand or wall mount orientation (metric
and imperial threads)
• IP53 rating for wet and dry conditions
• Frequency Spectrum
USA, Canada, Mexico:
1920-1930 MHz (10 Channels)
Transceiver Range Output Power: 100mW
EU, Russia, Singapore, Hong Kong, Australia, New Zealand, South
Africa: 1880-1900 MHz (20 Channels) Transceiver Range Output Power:
250mW
Japan: 1894 - 1905 MHz (6 Channels)
Transceiver
Range Output Power: 250mW
LA: 1910 MHz-1930 MHz (20 Channels)
Transceiver Range Output Power: 250mW
Brazil: 1910 MHz-1920
MHz (10 Channels)
Transceiver Range Output Power: 250mW
Modulation: GFSK, TDMA frame 10ms Full and Long slot
•
Power
Output: (EU/Russia) 10dBm average, (US): 18-20dBm
AC Input: 100VAC-240V AC, 60/50Hz, -1.4A max
Max Power
Consumption at 120V: 20W
PoE Class 3: 15.4W at PoE port, 12.95W
at device
USB Power Source: 5V, 3A; max power consumption = 12.5W
• Environmental
Operating: 32º-125ºF
(0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between
20% and 90%, Non-Condensing
• Mounting
Rear Mic Stand Mounts: Mic stand threaded sockets 5/8” & 3/8”
Safety Harness Attachment
Ball Joint Mic Adapter
•
Dimensions
8.5 x 7.5 x 2.5in (HxWxD)
(217 x 192 x
64mm)
• Weight
36.3oz (1028g)
