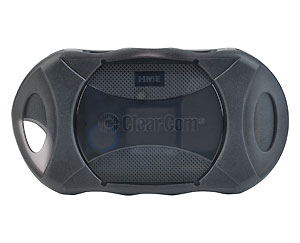

Clear-com BP410 2-Channel Beltpack
Clear-com BP410 is a rugged, light-weight,
ergonomically designed beltpack. The BP410 operates in the license-free
2.4GHz frequency range and are used with the BS410 base station.
• Two-channel operation
• 2.4GHz license-free operation
• Up to 15
beltpacks and/or all-in-one handsets on a single system
• 7kHz wideband
audio
• Single or dual-channel operation
• Up to 12 hours of battery
life
• Light-weight, compact design, ergonomic design
• Rugged and
reliable
Audio
• Channels: 2 audio channels
•
Frequency Range: 2400MHz – 2483.5MHz
• Frequency Response: 200Hz
– 7kHz
• Antenna: Internal, horizontal/vertical diversity
• Headset Connector: 4-pin, mini-DIN
• Microphone: Electret
• Headset Output: 160mW into 32 Ohms
• System Distortion: <2%
• Controls: Power, Volume-Up, Volume-Down, A, B, ISO
•
Indicators: Dual-color LED (red/green)
• Battery Requirements:
3.6V lithium-ion
• Battery Life: Up to 12 hours
Antenna
• Internal, Horizontal/Vertical diversity
Transmitter
• Type: Frequency Hopping,
Spread Spectrum (FHSS)
• Transmit Power: 100mW burst
•
Modes: Momentary or Latch
• Type: Gaussian filtered FSK, TDMA
• Frequency Stability: 13 ppm
• Harmonics/Spurious: Exceeds
FCC and ETSI specifications
Receiver
•
Type: Frequency Hopping, Spread Spectrum (FHSS)
• RF Sensitivity:
<-90dBm w 10-3 BER
• Frequency Stability: 13 ppm
•
Distortion: <2%
Environmental
• 32° to
+122°F (0° to +50°C)
Dimensions
• 2.25 x
4.5 x 1in (HxWxD)
(57.2 x 114.3 x 25.4mm)
Weight
• 7.4oz (0.21kg) including battery and pouch
