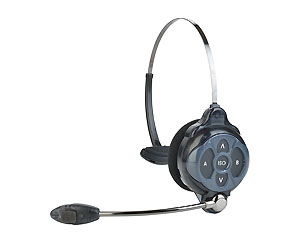

Clear-com WH410 Wireless Headset
Clear-com WH410 is a light-weight, single-ear,
all-in-one wireless headset, operates in the license-free 2.4GHz frequency
range and are used with the BS410 base station. The WH410 is compatible with
the DX410 digital wireless system.
• Two-channel operation
• 2.4GHz frequency range
• Hands-free
communications
• Up to 15 all-in-one headsets on a single system
•
7 kHz wide band audio
• Single-ear, light-weight design
• Rugged
and reliable
• Up to 12 hours of battery life
• Audio
Channels: 2 audio channels
Frequency Range: 2400MHz – 2483.5MHz
Frequency Response: 200Hz –
7 kHz
Antenna: Internal, horizontal/vertical diversity
Headset Connector: 4-pin, mini-DIN
Microphone: Electret
Headset Output: 160mW into 32 Ohms
System Distortion: <2%
Controls: Power, Volume-Up, Volume-Down, A, B, ISO
Indicators:
Dual-color LED (red/green)
Battery Requirements: 3.6V lithium-ion
Battery Life: Up to 12 hours
• Antenna
Internal
• Transmitter
Type:
Frequency Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mW
burst
Modes: Momentary or Latch
Type: Gaussian filtered
FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious:
Exceeds FCC and ETSI specifications
• Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF
Sensitivity: <-90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion: <2%
• Environmental
32° to +122°F (0° to +50°C)
• Weight
3.5oz (0.10kg) including battery
