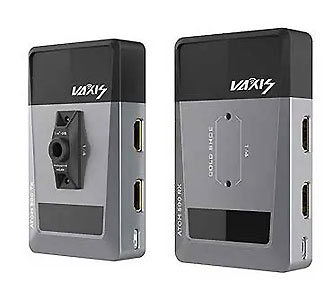

Vaxis ATOM 500 HDMI Wireless Video Transmission System

Vaxis ATOM 500 HDMI Wireless Video Transmission System

Product Code: ATOM 500 HDMI

Buy Sell Sale Vaxis ATOM 500 HDMI

review button

• Dual HDMI
• OLED Display
• USB-C power
• Passcode protection
• ATOM app

Flexible Monitoring
Cellphone + iPad +Monitor multiple monitoring-end ATOM 500 offers a plethora of ways to monitor your image. It offers a traditional connection through HDMI as well as a connection through the ATOM App to monitor via your iPad or tablet.

USB-C Power
Vaxis Atom 500 HDMI takes power to the next level with the introduction of a USB-C type connector. In addition to upgrading firmware through its USB-C connector, the ATOM 500 can also be powered by any USB-C style power bank, giving users more flexibility with power.

Robust Connection
Through extensive stress tests, the antennas on the Vaxis Atom 500 have been optimized to be nearly fail-proof. The ATOM 500’s antenna features a built-in design (insert type of material for the body here). This built-in antenna will greatly reduce signal loss even in complicated shooting environments. You can trust that ATOM will work anywhere.

OLED Display
Vaxis Atom 500 features a brand-new, beautifully designed OLED display that provides users with a quick view for easy configuration.

H.265 Encoding
ATOM 500 supports H.265 encoding to offer better image quality with less bandwidth.

Vaxis Atom 500 features HDMI in and dual HDMI out ports to give users two. The dual HDMI out coupled with the newly designed mobile app connection provides users with the ultimate monitoring solution on the market.

Flexibility Redefined
Vaxis Atom 500 features multiple 1/4-20 threading making it the most flexible wireless transmitter on the market. ATOM 500 makes Gimbal/Steadicam balancing easier with the option of mounting it horizontally or vertically.

Transmitter Receiver
Interface HDMI Input / Output USB Type-C Input HDMI Output*2 USB Type-C Input
Voltage 5V DC 5V DC
Power Consumption 6.5W 4.5W
Input Video Format 720P@60Hz 1080i@50/60 1080P@24/25/30/50/60 /
Output Video Format / 720P@60Hz 1080i@50/60 1080P@24/25/30/50/60
Weight 134g 130g
Dimensions 105 x 63.5 x 20 mm 105 x 63.5 x 20 mm
Frequency 5GHz 5GHz
Transmission Power 17 dBm 17 dBm
Delay ≤0.1s ≤0.1s
Rx Sensitivity -80dBm -80dBm

• 1x Transmitter
• 1x Receiver
• 1x USB Type-C Cable
• 1x User Manual
• Limited 1 Year Warranty
