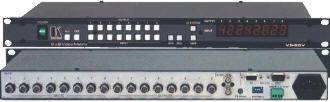

VS-88V,
8x8 Video Matrix Switcher VS88V VS88-V
|
|
|
|
|
The VS-88V is a high
performance matrix switcher for composite video signals. Switching
during the vertical interval ensures glitch-free switching with
genlocked sources.
Typical
Applications:
-
Video broadcast
studios for On-air switching and signal routing
-
Video production
studios, for connecting various sources to
acceptors.
-
Non-linear editing
suites.
|
|
|
FEATURES
|
|
-
Bandwidth - 200MHz
(- 3dB) fully loaded.
-
Control - Front
panel, RS-232 (K-Router™ Windows® - based software is
included), & RS-485.
-
Take Button -
Execute multiple switches all at once.
-
Memory Locations -
Store multiple switches as presets to be recalled and executed when
needed.
-
Audio Breakaway
Switching.
-
Vertical Interval
Switching.
-
Switching
Synchronization - Synchronize either to external reference or the
incoming video
-
Looping Sync
Input.
-
Selectable Sync
Signal Termination.
-
Worldwide Power
Supply - 84-264V AC.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS : |
8 composite video, 1Vpp/75Ω on
BNC connectors, looping analog sync inputs 1Vpp/75Ω on BNC
connectors. |
|
|
OUTPUTS : |
8 composite video, 1Vpp/75Ω on
BNC connectors, looping analog sync inputs 1Vpp/75Ω on BNC
connectors. |
|
|
VIDEO
BANDWIDTH(-3dB): |
200MHz. |
|
|
DIFF. GAIN: |
0.05%. |
|
|
DIFF. PHASE: |
0.03 Deg. |
|
|
K-FACTOR: |
0.05%. |
|
|
VIDEO S/N: |
74dB. |
|
|
VIDEO CROSSTALK: |
-50dB @ 5MHz. |
|
|
SWITCHING: |
During vertical interval from analog
sync. |
|
|
CONTROLS: |
22 front-panel touch switches,
RS-232 and RS- 485 control interface. |
|
|
DISPLAY: |
Current switcher status on 8
7-segment bright LEDs. |
|
|
POWER: |
Universal, 85-264 VAC, 47- 440 Hz,
25 VA max. |
|
|
DIMENSIONS: |
19-inch (W) x 7-inch (D) x 1U (H),
rack mountable. |
|
|
WEIGHT: |
3.5kg. (7.8 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Windows 95/98 control
software, null modem adapter. |
|
|
|
|
|
