VS-4x4YCXL,
4x4 s Video Audio Matrix Switcher VS4x4YCXL VS4x4-YCXL
|
|
|
|
|

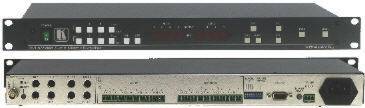

The VS-4x4YCxl is a
high performance matrix switcher for s-Video (Y/C) and balanced
stereo audio signals. Switching during the vertical interval
ensures glitch-free switching with genlocked sources
Typical
Applications:
|
|
|
FEATURES
|
|
-
Bandwidth (Y) -
75MHz (- 3dB) fully loaded.
-
Control - Front
panel, RS-232 (included K-Router™ Windows® - based
software is included), & RS-485, IR Remote
(included).
-
Front Panel Control
Lockout.
-
Take Button -
Execute multiple switches all at once.
-
Memory Locations -
Store multiple switches as presets (salvos) to be recalled and
executed when needed.
-
Audio Gain Level
Controls - Input and output via RS-232.
-
Audio Breakaway
Switching.
-
Vertical Interval
Switching.
-
Switching
Synchronization - Synchronize either to external reference or the
incoming video.
-
Selectable Sync
Signal Termination.
-
Worldwide Power
Supply - 100-240V AC.
-
Standard 19" Rack
Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
4 s-Video, 1 Vpp/75Ω (Y),
0.3Vpp/75Ω (C) on 4p connectors. 4 balanced stereo audio,
+4dBm/25kΩ on detachable terminal blocks. |
|
|
OUTPUTS: |
4 s-Video, 1 Vpp/75Ω (Y),
0.3Vpp/75Ω (C) on 4p connectors. 4 balanced stereo audio,
+4dBm/47Ω on detachable terminal blocks. |
|
|
MAX. OUTPUT LEVEL: |
VIDEO: 2.5Vpp | AUDIO:
+19dBm |
|
|
BANDWIDTH (-3dB): |
VIDEO: 75MHz, Fully Loaded | AUDIO:
28kHz |
|
|
DIFF. GAIN: |
<0.02% |
|
|
DIFF. PHASE: |
<0.02 Deg |
|
|
K-FACTOR: |
<0.05% |
|
|
S/N RATIO: |
VIDEO: 82dB | AUDIO:
74dB |
|
|
CROSSTALK (all
hostile): |
VIDEO: -61dB @ 5MHz | AUDIO: -70dB @
20kHz |
|
|
CONTROLS: |
Audio gain level control by K Router
software, –91dB to +26dB. Front panel touch switches, RS-232,
RS-485, IR |
|
|
COUPLING: |
VIDEO: DC | AUDIO: DC at input, AC
at output |
|
|
AUDIO THD + NOISE: |
0.081% |
|
|
AUDIO 2nd HARMONIC: |
0.044% |
|
|
POWER SOURCE: |
100 240 VAC, 50/60 Hz; 90mA
switching power supply |
|
|
DIMENSIONS: |
19-inch (W), 7-inch (D) 1U (H)
rack-mountable |
|
|
WEIGHT: |
2.7 kg (6 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Null modem adapter,
Windows® based Kramer control software, Infra-red remote
control transmitter |
|
|
|
|
|
