VS-61YC,

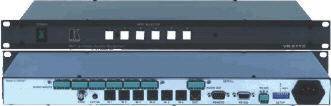

6x1 s-Video Audio Switcher VS61YC VS61-YC
|
|
|
|
|
The VS-61YC is a
high performance switcher for s-Video (Y/C) and balanced stereo
audio signals. Switching during the vertical interval ensures
glitch-free switching with genlocked sources.
Typical
Applications:
-
Video production
studios and professional presentation systems.
-
Live broadcast, for
switching between cameras in real-time.
-
CCTV and security
applications.
|
|
|
FEATURES
|
|
-
Bandwidth (Y) -
250MHz (- 3dB).
-
Vertical Interval
Switching.
-
Switching
Synchronization - Synchronize either to external reference or the
incoming video.
-
Control - Front
panel, RS-232 (K-Router™ Windows® - based software is
included), & RS- 485 & contact closure
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
6 s-Video, 1 Vpp/75Ω (Y),
0.3Vpp/75Ω (C) on 4p connectors. 6 balanced audio stereo, +
4dBm/10kΩ on detachable terminal blocks. |
|
|
OUTPUTS: |
1 s-Video, 1 Vpp/75Ω
(Y), 0.3Vpp/75Ω (C) on a 4p connector. 1 balanced audio
stereo, + 4dBm/50Ω on a detachable terminal
block. |
|
|
MAX. OUTPUT LEVEL: |
Video: 3.8Vpp (Y); audio: 18
Vpp. |
|
|
BANDWIDTH (-3dB): |
Video: 250MHz; audio: 100
kHz. |
|
|
DIFF. GAIN: |
0.06%. |
|
|
DIFF. PHASE: |
0.05 Deg. |
|
|
K-FACTOR: |
0.05%. |
|
|
S/N: |
Video: 77.2dB; audio:
87dB. |
|
|
CROSSTALK: |
Video: - 62.8dB @ 5MHz; audio: -
81.6dB @ 1kHz. |
|
|
CONTROL: |
Manual, RS-232,
RS-485. |
|
|
COUPLING: |
DC |
|
|
AUDIO THD + NOISE: |
0.091% |
|
|
2nd HARMONIC: |
0.023%. |
|
|
POWER SOURCE: |
230 VAC (115 VAC U.S.A), 50/60 Hz,
20VA. |
|
|
DIMENSIONS: |
19-inch (W), 7-inch (D) 1U (H)
rack-mountable. |
|
|
WEIGHT: |
2.7 kg (6 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Null modem adapter,
Windows 95/98/NT/2000™ Kramer control
software. |
|
|
|
|
|
