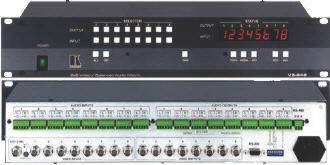

VS-848, 8x8
Balanced A/V Matrix Switcher VS848
|
|
|
|
|
The VS-848 is a high
performance matrix switcher for composite video and balanced stereo
audio signals. Switching during the vertical interval ensures
glitch-free switching with genlocked sources.
Typical
Applications:
-
Any professional
system requiring outstanding value in a 8x8 matrix
-
Production and
duplications facilities, rental and staging.
-
Security, CCTV, and
home theater systems.
-
Production studio
vertical interval routing between Genlocked sources.
|
|
|
FEATURES
|
|
-
Bandwidth - 200MHz
(-3dB) fully loaded.
-
Control - Front
panel, RS-232 (K-Router™ Windows® - based software is
included), & RS-485.
-
Take Button -
Execute multiple switches all at once.
-
Memory Locations -
Store multiple switches as presets (salvos) to be recalled and
executed when needed.
-
Audio Breakaway
Switching.
-
Vertical Interval
Switching.
-
Switching
Synchronization - Synchronize either to external reference or the
incoming video.
-
Selectable Sync
Signal Termination.
-
Standard 19”
Rack Mount Size - 2U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS : |
8 composite video, 1Vpp/75Ω on
BNC connectors.1 Sync/Video Genlock 1Vpp/75Ω with sync select
switch. 8 balanced audio stereo, + 4dBm/33 KΩ on detachable
terminal blocks. |
|
|
OUTPUTS : |
8 composite video, 1Vpp/75Ω on
BNC connectors. 8 balanced audio stereo, + 4dBm/50Ω (24 Vpp
max.) on detachable terminal blocks. |
|
|
MAXIMAL AUDIO: |
24 Vpp (> 20dBm). |
|
|
NON LINEARITY: |
0.1%. |
|
|
VIDEO BANDWIDTH
(-3dB): |
200MHz. |
|
|
AUDIO BANDWIDTH
(-3dB): |
100kHz. |
|
|
DIFF. GAIN: |
0.05%. |
|
|
DIFF. PHASE: |
0.03 Deg. |
|
|
K-FACTOR: |
0.05%. |
|
|
VIDEO S/N RATIO: |
74dB. |
|
|
AUDIO S/N RATIO: |
84 dB. Unweighted
(1Vpp). |
|
|
VIDEO CROSSTALK : |
-50dB @ 5MHz. |
|
|
CONTROLS: |
Manual, RS-232 or RS-
485. |
|
|
SWITCHING: |
Vertical interval. |
|
|
AUDIO COUPLING: |
|
|
|
AUDIO THD : |
0.025% (1V, 1kHz). |
|
|
2nd HARMONIC: |
0.013%. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115VAC, U.S.A.),
14 VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D) 2U (H) rack
mountable. |
|
|
WEIGHT: |
3.5 kg (7.8 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Windows® - based
control software, Null modem adapter. |
|
|
|
|
|
