VS-4228,

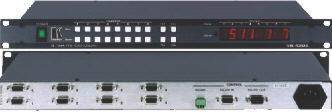

8 Port RS-422 Matrix Switcher VS4228
|
|
|
|
|
The VS-4228 is a
high performance bi-directional matrix switcher for RS-422 control
signals. It can connect multiple ports to create from one to four
bi-directional communications groups.
Typical
Applications:
-
Remote control of
video and audio production studios.
-
Live broadcast
remote control.
-
CCTV and other
remote control applications.
|
|
|
FEATURES
|
|
-
Control - Front
panel, RS-232 (K-Router™ Windows® - based software is
included), & RS-485
-
Memory Locations -
Store multiple switches as presets to be recalled and executed when
needed.
-
Front Panel Control
Lockout.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS/OUTPUTS: |
8 in/out ports on DB-9 female
connectors, fully compliant to TIA/EIA-422-B standard. RS-232
control via DB-9 female connector (RS-232 out on DB-9 male
connector), RS-485 on terminal block assembly |
|
|
CONTROLS: |
Manual with push buttons on front
panel, RS-485 and RS-232 serial interface |
|
|
POWER SOURCE: |
230VAC, 50/60 Hz, (115V U.S.A.) 10
VA. |
|
|
DIMENSIONS (W,D,H): |
19-inch (W), 7-inch (D) 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.2 kg (4.88 lbs.
approx.). |
|
|
ACCESSORIES: |
Power cord, Windows® - based
control program. |
|
|
|
|
|
