VS-601XLM,

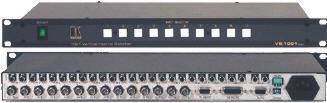

Vertical Interval Video Audio Switchers VS601XLM VS601-XLM
|
|
|
|
|
The VS-401xlm,
VS-601xlm, VS-801xlm, VS-1001xlm, and VS-1201xl are high
performance switchers for composite video and unbalanced audio
signals. Switching during the vertical interval ensures glitch-free
switching with genlocked sources
Typical
Applications:
|
|
|
FEATURES
|
|
-
High Bandwidth -
400MHz (- 3dB) for XLM & 250MHz for VS-1201xl
-
Vertical Interval
Switching
-
Switching
Synchronization - Synchronize either to external reference or the
incoming video
-
Control - Front
panel RS-232 K-Router™ Windows® - based software is
included), RS- 485, & contact closure
-
Outputs - 3 audio
& video (xlm models).
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
12, 10, 8, 6, 4 composite/single
component video, 1Vpp/75Ω, on BNC connectors. 12, 10, 8, 6, 4
audio stereo, + 4dBm, 10kΩ, on RCA connectors. 1 external
sync input (or composite video) 1Vpp/75Ω, on a BNC
connector. |
|
|
OUTPUTS: |
1 x 3 (xlm)/1(xl) composite/single
component video, 1Vpp/75Ω on BNC connectors. 1 x 3 (xlm)/ 1
(xl) audio stereo up to + 28Vpp/50Ω, (24dBm) on an RCA
connector |
|
|
VIDEO BANDWIDTH
(-3dB): |
250 MHz, 1201xl. 400MHz, 1001xlm -
401xlm |
|
|
AUDIO BANDWIDTH
(-3dB): |
55 kHz. |
|
|
DIFF. GAIN: |
0.04%. |
|
|
DIFF. PHASE: |
0.03 Deg. |
|
|
K-FACTOR: |
0.05%. |
|
|
VIDEO S/N RATIO: |
77.6 dB |
|
|
AUDIO S/N RATIO: |
90.3dB Unweighted. |
|
|
NON LINEARITY: |
Less than 0.1%. |
|
|
AUDIO CROSSTALK: |
-79dB. |
|
|
CONTROL: |
12 illuminated front-panel touch
switches, RS-232, RS-422, contact closure. |
|
|
AUDIO THD+NOISE: |
0.02%. |
|
|
2nd HARMONIC: |
0.003% (1kHz). |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115VAC U.S.A.)
16 VA (VS-1211). |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D) 1U (H) rack
mountable. |
|
|
WEIGHT: |
3.1 kg (6.88 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Windows® - based
control software, Null modem adapter. |
|
|
|
|
|
