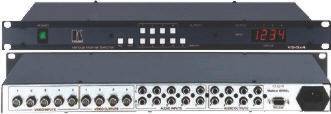

VS-5x4,
5x4 Vertical Interval A/V Matrix
Switcher VS5x4
|
|
|
|
|
The VS-5x4 is a high
performance matrix switcher for composite video and unbalanced
stereo audio signals. Switching during the vertical interval
ensures glitch-free switching with genlocked sources.
Typical
Applications:
-
Small video and
audio editing systems.
-
Any professional
display system requiring outstanding value in a true 5x4
matrix.
-
Non-linear editing
systems.
|
|
|
FEATURES
|
|
-
Bandwidth - 34MHz (-
3dB) fully loaded.
-
Control - Front
panel & RS-232 (K-Router™ Windows® - based software
is included).
-
Vertical Interval
Switching.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
5 composite video, 1Vpp/75Ω on
BNC connectors. 5 audio stereo 1Vpp/50kΩ on RCA connectors.
DB-9 Connector for RS-232 control. |
|
|
OUTPUTS: |
4 composite video, 1Vpp/75Ω on
BNC connectors. 4 audio stereo 1Vpp/100Ω on RCA
connectors. |
|
|
AUDIO BANDWIDTH
(-3dB): |
20kHz. |
|
|
VIDEO BANDWIDTH
(-3dB): |
34MHz. |
|
|
DIFF. GAIN: |
0.13%. |
|
|
DIFF. PHASE: |
0.8Deg. |
|
|
K-FACTOR: |
0.05%. |
|
|
VIDEO S/N RATIO: |
74dB. |
|
|
AUDIO S/N RATIO: |
89dB. |
|
|
VIDEO CROSSTALK: |
-47dB Luma. |
|
|
AUDIO CROSSTALK: |
-53dB. |
|
|
CONTROL: |
Touch sw. and
RS-232. |
|
|
AUDIO THD: |
0.02%. |
|
|
POWER SOURCE: |
230 VAC, 50/60Hz (115VAC U.S.A.) 6
VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.7kg. (6lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Windows® - basic
control software, Null modem adapter. |
|
|
|
|
|
