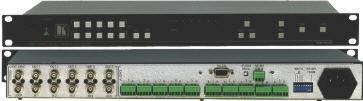

VS-5x5, 5x5
Video Audio Matrix Switcher VS5x5
|
|
|
|
|
The VS-5x5 is a high
performance matrix switcher for composite video and unbalanced
stereo audio signals. Switching during the vertical interval
ensures glitch-free switching with genlocked sources.
Typical
Applications:
-
Professional video
display and monitoring systems requiring true 5x5 matrix
operation.
-
Multimedia and
presentation source and acceptor selection.
-
Production and video
editing studios.
|
|
|
FEATURES
|
|
-
Bandwidth - 70MHz (-
3dB) fully loaded.
-
Control - Front
panel, RS-232 (included K-Router™ Windows® - based
software is included), & RS-485, IR Remote
(included).
-
Front Panel Control
Lockout.
-
Take Button -
Execute multiple switches all at once.
-
Memory Locations -
Store multiple switches as presets to be recalled and executed when
needed.
-
Audio Gain Level
Controls - Input and output via RS-232.
-
Audio Breakaway
Switching.
-
Vertical Interval
Switching.
-
Switching
Synchronization - Synchronize either to external reference or the
incoming video.
-
Looping Sync
Input.
-
Worldwide Power
Supply - 100-240V AC.
-
Standard 19" Rack
Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
5 composite video 1Vpp / 75Ω on
BNC connectors 5 balanced stereo audio, +4dBm (nominal)/25kΩ
on detachable terminal blocks |
|
|
OUTPUTS: |
5 composite video 1Vpp / 75Ω on
BNC connectors 5 balanced stereo audio, +4dBm (nominal)/47Ω on
detachable terminal blocks |
|
|
MAX. OUTPUT LEVEL: |
VIDEO: 2Vpp | AUDIO:
+19dBm |
|
|
BANDWIDTH (-3dB): |
VIDEO: 70MHz, Fully Loaded | AUDIO:
29kHz |
|
|
DIFF. GAIN: |
0.02% |
|
|
DIFF. PHASE: |
0.44 Deg |
|
|
K-FACTOR: |
<0.05% |
|
|
S/N RATIO: |
VIDEO: 75.1dB | AUDIO:
74dB |
|
|
CROSSTALK (all
hostile): |
VIDEO: -51.4dB @ 5MHz | AUDIO:
105dB |
|
|
CONTROLS: |
Audio gain level control by K Router
software, –91dB to +26dB |
|
|
COUPLING: |
VIDEO: DC | AUDIO: DC at input, AC
at output |
|
|
AUDIO THD + NOISE: |
0.102% |
|
|
AUDIO 2nd HARMONIC: |
0.053% |
|
|
POWER SOURCE: |
100-240 VAC, 50/60 Hz,
28VA |
|
|
DIMENSIONS: |
19-inch (W), 7-inch (D) 1U (H)
rack-mountable |
|
|
WEIGHT: |
2.7 kg (6 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Null modem adapter,
Windows® based Kramer control software, Infra-red remote
control transmitter |
|
|
|
|
|
