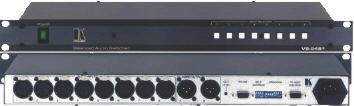

VS-2481, 8x1
Balanced Audio Switcher VS2481
|
|
|
|
|
The VS-2481 is a
high performance switcher for balanced mono audio signals on XLR
connectors. It switches any one of eight signals to two identical
outputs.
Typical
Applications:
-
Any professional A/V
system requiring XLR connectors audio switching.
-
Live broadcasting,
for switching between sources in real-time.
-
Audio recording
studios.
|
|
|
FEATURES
|
|
-
S/N Ratio -
91dB.
-
Control - Front
panel & RS-232 (included K-Router™ Windows® - based
software is included).
-
Expandable - Cascade
multiple units.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
8 balanced audio, + 4dBm nom.
acceptor dependent input impedance, on female XLR
connectors |
|
|
OUTPUTS: |
2 balanced audio, + 4dBm, one fixed
and onewith level control on male XLR connectors. 1 DB-9 connector
for control when cascading,1 DB-9 connector for
RS-232. |
|
|
BANDWIDTH (-3dB): |
50 kHz. |
|
|
S/N: |
91dB. |
|
|
CROSSTALK: |
Better than - 50dB. |
|
|
CONTROL: |
8 illuminated front-panel touch
switches, RS-232. |
|
|
SWITCH RESPONSE: |
Less than 3mS (when manually
controlled). |
|
|
THD: |
Controllable output - 0.074%, @
1kHz; second output 0.024%. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115VAC U.S.A.)
4.1 VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.6kg. (2.8 lbs.)
approx. |
|
|
ACCESSORIES:
|
Power cord, Windows® - based
control software, Null modem adapter. |
|
|
OPTIONS:
|
Kramer model VS-2081S companion
switcher for s-Video. |
|
|
|
|
|
