Datavideo PTC-150 HD/SD PTZ Video Camera

Datavideo PTC-150 HD/SD PTZ Video Camera

One-person camera crew

The beauty of multiple PTC-150 cameras is the ability to control all of them from a single control panel. Pair up to 4 cameras with the RMC-180 controller, and you can reduce your camera crew to just... you.

Simultaneous Outputs

Connect your PTC-150 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

Simple multi-camera control at your fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 series makes it easy to set up and control up to four Datavideo PTC-150 cameras for any live video production.

RMC-300A can control up to 24 PTC-150 cameras

Designed to control up to 24 PTC-150 cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-150 cameras simultaneously, 7 presets for each camera to operate with RGB backlit buttons.

Wide 63° Field of View

PTC-150 provides a wide Field of View of 63°, easily shooting all the scenes in the field.

Fantastic 3G Resolution

The PTC-150 shoots video at a maximum resolution of 1080p60, with advanced digital noise reduction for beautiful, smooth image quality even in less-than-perfect lighting conditions.

1/2.8” CMOS and Two Megapixel Resolution

High-quality CMOS and fine resolution bring you extremely clear and sharp images.

30x Optical Zoom

The PTC-150's impressive 30x optical zoom allows you to mount it near or far and still get great, sharp shots.

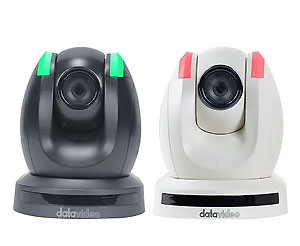

Black or White Body

The PTC-150 is available in dark gray or white to remain inconspicuous in permanent setups.

Other Web:

Datavideo PTC-150 HD/SD PTZ Camera

Video format/Resolution	1080p 59.94/50/29.97/25 1080i 59.94/50 720p 59.94/50 480i, 576i (on CVBS)
Image Sensor	1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.)	2.14 Mega pixels
S/N Ratio	50dB
Min. Illumination	Color : 0.4 lx B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter	1/25~1/1250 sec (50/25Hz) 1/30~1/1500 sec (59.94/29.97Hz)
Zoom Ratio	30x Optical Zoom
Gamma Control	Off / Normal / Standard Mode 1-4
Iris Control	Auto / Manual
Digital Noise Reductions	Yes
On-Screen Display (OSD)	English
White Balance	AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent
AGC / Gain Control	Auto / Manual Max. Gain Limit
Mirror / Flip Image	Yes
Focus Mode	Auto/Manual
Panning / Tilting Range	Pan: 270° , Tilt: +90° to -20°
Panning / Tilting Speed	Manual: 1~150°/Sec Swing: 1~150°/Sec
Preset	50
Focal Length	f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7
Field of View (Horizontal, Wide)	Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation	Day & Night Function
Video Output	3G-SDI x1 HDMI x1 CVBS x1
Audio Input	---
Tally LED	Dual color (Red, Green)
Lens Filter	M52.0 x 0.75 Thread with UV Protection
Control Protocol	VISCA, DVIP
Remote Control Interface	IR RS-422 DVIP
Video Compression Format	--
Audio Compression Format	--
Audio Bitrate	--
Streaming Protocols	--
First Stream Supported Resolution	--
Second Stream Supported Resolution	--
Video Bitrate	--
Video Bitrate Mode	--
Encoding Frame rate	--
POE	--
F/W Update	USB
IR Control	Yes
Camera Control Unit	RMC-180 series/RMC-300 series
Tripod Mount	1/4-20 UNC
Color	Dark Blue/White
Dimension (LxWxH)	173(W) x 189(H) x 219(D)
Weight	2.7 kg
Operating Temp. Range	0~40 °C
Power	DC 12V 29W

• 1 x PTC-150 Unit
• 1 x IR remote controller
• 1 x Ceiling mount bracket -A
• 1 x Ceiling mount bracket -B
• 6 x Ceiling mount bracket screw M3*4mm
• 1 x DC 12V Power Adaptor
• 1 x Power Cord
• 1 x A tightrope
