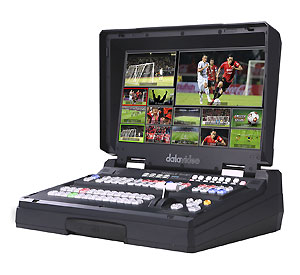

Datavideo HS-3200 HD Portable Video Streaming Studio

Datavideo HS-3200 12-Channel HD Video Streaming Studio

Supports full 1080P with scaling on each available input

The HS-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

Completely customizable 12 input full HD production switcher

The Datavideo HS-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (5x SDI+4x HDMI) to help you produce a sophisticated and professional live event.

Stream to Facebook Live, YouTube, Twitch and more

The built-in H.264 web streaming encoder allows you to stream your show to Facebook, YouTube or Twitch in no time.

Built-in H.264 recorder for SD cards

The HS-3200 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

Create stunning video effects with advanced features

Advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.

Variety of video and audio input/output

The HS-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (5x SDI+4x HDMI) to help you produce a sophisticated and professional live event.

17.3'' LED Backlit Monitor

Built-in Monitor Display. 17.3" HD TFT LED backlit monior with resolution 1920x1080 pix.

Built-in animation and backgrounds

Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects.

Included CG Title Creator

All 3200 series switchers have built-in support for Datavideo CG software.

This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Other Web:

Datavideo HS-3200 Mobile Video Studio

Video Standard	Full HD
Video Format	1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz
Input Routable / Crosspoint	All 12, repeatable
Video Input	8x SDI, 4x HDMI
Computer Graphic Interface	4 via HDMI
Down-converted output	N/A
Video Output	5x SDI assignable: Multiview, PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12. 4x HDMI assignable: Multiview, PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12.
Audio Input	4x Balanced XLR
Audio Output	2x Balanced XLR
Embedded Audio Support	Input up to 16 channels, Output 4 channels
Audio Delay Calibration	Up to 16 frames
A+V switching	Yes
USK	4
DSK	2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture	8 (4x PIP, 4x Flex Source)
Logo Insertion	2
Built-in Audio Mixer	N/A
Built-in Monitor Display	17.3? HD TFT LED backlit, 1920×1080 pix
Built-in Intercom & Tally	N/A
Streaming Video Encode	H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encode	AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Streaming Protocol	TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP (Publish)
Streaming Control	Web browser UI for configuration and control Socket commands
Recording File System	FAT, exFAT, NTFS
Recording File Format	MP4
Recording Setting Control	Web UI for system configuration and control
Dimension (LxWxH)	455 x 355 x 134 mm
Weight	17.8 Lbs (8.1 Kg), Reinforce Plastic Case
