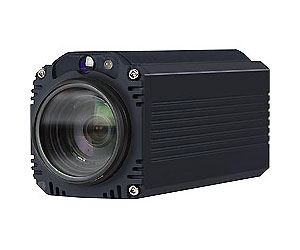

Datavideo BC-80 HD Block Camera

Datavideo BC-80 HD Block Camera

Excellent HD resolution

1/2.8 inch CMOS sensor. 1080p HD resolution.

30x optical zoom with digital noise reduction

The BC-80's 30x optical zoom allows you to mount it near or far and still get great, sharp shots, even in less-than-perfect lighting conditions.

1x 3G-SDI, 1x HDMI video output

Featuring a 3G-SDI and HDMI output this camera is ready to be used in any AV or broadcast workflow.

Digital Noise Reduction Function zoom (DNR)

DNR process to ensure the video has the optimal image quality under low light by noise reduction.

Controllable by VISCA/DVIP

The BC-80 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface.

Other Web:

Datavideo BC-80 HD Block Camera

Video format/Resolution	1080p 59.94/50/29.97/25 1080i 59.94/50 720p 59.94/50
Image Sensor	1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.)	2.14 Mega pixels
S/N Ratio	50dB
Min. Illumination	Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High) B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter	1/25~1/1250 sec (50/25Hz) 1/30~1/1500 sec (59.94/29.97Hz)
Zoom Ratio	30x Optical Zoom
Gamma Control	Off / Normal / Standard Mode 1-4
Iris Control	Auto / Manual
Digital Noise Reductions	Yes
On-Screen Display (OSD)	English
White Balance	AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent
AGC / Gain Control	Auto / Manual (0 to 28 step) Max. Gain Limit (6 to 28 step)
Mirror / Flip Image	Yes
Focus Mode	Auto / Manual
Panning / Tilting Range	--
Panning / Tilting Speed	--
Preset	10 Position
Focal Length	f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7
Field of View (Horizontal, Wide)	Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation	Day & Night function
Video Output	HDMI (V1.3) x 1 3G-SDI x 1
Audio Input	---
Tally LED	Dual color (Red, Green)
Lens Filter	M52.0 x 0.75 Thread with UV Protection
Control Protocol	VISCA / DVIP Protocol
Remote Control Interface	RS-422: Transmit up to 1000m DVIP (RJ45): 100m
Video Compression Format	---
Audio Compression Format	---
Audio Bitrate	---
HD IP Interface	---
Streaming Protocols	---
First Stream Supported Resolution	---
Second Stream Supported Resolution	---
Video Bitrate	---
Video Bitrate Mode	---
Encoding Frame rate	---
POE	---
F/W Update	USB
IR Control	Yes
Camera Control Unit	RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount	1/4-20 UNC
Color	Dark Blue
Dimension (LxWxH)	71 x 202 x 83 mm
Weight	0.7 kg
Operating Temp. Range	0~40 °C
Power	DC 12V 15W

• 1 x BC-80 main unit
• 1 x IR remote control
• 1 x DC 12V power adaptor
