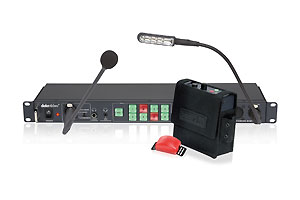

Datavideo ITC-100 Intercom System

Datavideo ITC-100 8-Channel Intercom System

Rackmountable 8 Channels Intercom System

The Datavideo ITC- 100 Intercom system provides 8-way talkback and tally indicators. The producer can talk to an individual channel or to all channels simultaneously.

Selectable Channel Talk, Broadcast to All or Mute

The director can select to talk to an individual channel or to all channels simultaneously.

Communication Distance Up to 200 Meters

Good communication is vital in any production studio; keeping communication between the director, camera crew, lighting engineer, and control room is essential to produce a polished end result.

19'' 1U Rack Design

The ITC-100 is a standard 19" 1U rack design, so it is easy to integrate into any rack system for use in the field or studio.

Dual Color Tally Light Indicator

Additional external earphone and microphone interface, and supplied complete with gooseneck mic and light.

Other Web:

Datavideo ITC-100 Intercom System

Tally	2 x 15 Pin DSub Sockets for Tally A and B
MIC / Headset	3.5 mm Stereo Jack Socket for Headphone / Microphone combination Headset Impedance  8-600 Ohms 100 mW (min)
Headphone	¼” (6.3mm) Stereo Headphone Socket Headset Impedance 8-600 Ohms 100 mW (min)
Light Socket (DC 12 V)	3 PIN XLR Connector PIN 2: 12V PIN 3: GND Light Power Consumption: 12 V / 100 mA (MAX.)
Microphone	3 PIN XLR / ¼” (6.3mm) Jack Microphone Socket Switchable Condenser / Dynamic Input Microphone Level -67 dB
Frequency Response	550-3.6 kHz, <+/- 3dB
THD	< 3%
S/N	> 50dB
Built-in Speaker	70mm x 30mm 32 Ohm 3 Watts
Operating Range	Up to 200 meters between base station and slave
Operating Temp. Range	0~40 °C
Dimension (LxWxH)	482 x 127 x 46 mm
Weight	1.9 kg
Power	DC 12V, 8W

• 1 x ITC-100 Base Unit
• 4 x ITC-100SL Belt Pack
• 4 x ITC-100SL Carry Case
• 4 x Cable 5piin XLR to XLR
• 4 x 3.5mm Jack to 3.5mm Jack Cable
• 4 x Headset with microphone
• 4 x Tally LED Indicator
• 1 x XLR Gooseneck Microphone
• 1 x XLR Gooseneck Light
• 1 x 12V 1A Power Supply Unit
