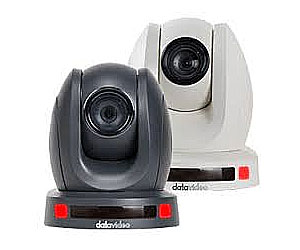

Datavideo PTC-140T HDBaseT PTZ Camera

Datavideo PTC-140T Stunning Full HD Resolution PTZ Camera

The PTC-140T boasts a 1/2.8-inch CMOS sensor, delivering a Full HD resolution of 1920x1080 pixels at a smooth 60 frames per second

One Cable Solution

HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable

20x Optical Zoom, 10x Digital Zoom

The PTC-140T's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.

Advanced 2D/3D Noise Reduction Function

Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.

Simply Enable Auto Tracking with Your IR Remote Control

The RMC-1AT PTZ Controller is all you need; it allows you to use a remote control to set and control all four cameras and save the four presets.

Wide 54° Field of View

PTC-140T provides a wide Field of View of 54°, easily shooting all the scenes in the field.

H.264/H.265 Video Compression for Streaming

With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

Other Web:

Datavideo PTC-140T PTZ Camera

Video format/Resolution	1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
Image Sensor	1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)	2.07 Mega pixels
S/N Ratio	≥50dB
Min. Illumination	0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter	Auto / Manual
Zoom Ratio	20x Optical Zoom, 10x Digital Zoom
Gamma Control	Off / Normal
Iris Control	Auto / Manual
Digital Noise Reductions	Yes
On-Screen Display (OSD)	English, Simplified Chinese
White Balance	Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control	Auto / Manual
HDR/WDR	N/A
Mirror / Flip Image	Yes
Focus Mode	Auto/Manual
Panning / Tilting Range	Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed	Pan: 0.1~60°/sec Tilt: 0.1~30°/sec
Preset	255
Focal Length	f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5
Field of View (Horizontal, Wide)	60°
Image Compensation	Back light compensation
Video Output	HDBaseT (PoE) x1 RJ-45 x1
Audio Input	3.5mm Line in
Tally LED	Dual color (Red, Green)
Lens Filter	M52.0 x 0.75 Thread with UV Protection
Control Protocol	Pelco-D, Peldo-P, VISCA, VISCA over IP, DVIP, ONVIF
Remote Control Interface	IR Web GUI RS-422 DVIP HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format	H.264/H.265
Audio Compression Format	AAC, G711
Audio Bitrate	96Kbps, 128Kbps, 256Kbps
HD IP Interface	100M IP port(100BASE-TX); Support DVIP
Streaming Protocols	RTSP, RTMP(S), ONVIF, Multicast, SRT
First Stream Supported Resolution	--
Second Stream Supported Resolution	--
Video Bitrate	--
Video Bitrate Mode	--
Encoding Frame rate	--
POE	--
F/W Update	Via Web UI
IR Control	Yes
Camera Control Unit	HS-1600T series/ RMC-180 series/ RMC-300 series/ PTZ View Assist APP
Tripod Mount	1/4-20 UNC
Color	Dark Blue/White
Dimension (LxWxH)	156 x 184 x 186 mm
Weight	1.6 kg
Operating Temp. Range	0~40 °C
Power	DC 12V

• 1 x PTC-140T Unit
• 1 x IR remote controller
• 1 x Ceiling mount bracket-A
• 1 x Ceiling mount bracket-B
• 6 x Ceiling mount bracket screw M3*4mm
• 1 x DC 12V Power Adaptor
• 1 x Power Cord
• 1 x Safety Cable
• 1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cab
