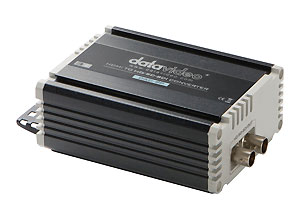

Datavideo DAC-9P HDMI to SDI Converter

Datavideo DAC-9P HDMI to SDI Converter

HDMI to SDI Conversion

The DAC-9P supports HDMI to 3G/HD/SD-SDI conversion, allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders.

Better transmission through SDI

By using the DAC-9P, user can convert HDMI to High Definition & Standard Definition SDI and take advantage of the long-distance transmission, high quality and affordable connectivity that SDI cables offer.

Audio embedded within SDI output signal

The DAC-9P embeds the audio from HDMI into the SDI signal so only one single cable is needed.

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.


Other Web:

Datavideo DAC-9P HDMI to SDI Converter

Conversion	HDMI to 3G/HD/SD-SDI
Video Inputs	1x HDMI
Loop Through	---
Video Outputs	2x 3G/HD/SD-SDI with embedded Audio
Audio Inputs	2x HDMI Audio embedded
Audio Outputs	2x SDI Audio embedded
Audio Format Selection	----
Audio Gain	----
Supported Video Input Formats	1080p (23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 576i (PAL), 480i (NTSC)
Output Resolutions	Automatically matches the SD, HD and 3G HDMI video input
Equalizer	---
Reclock	---
SDI Cable Drive /td>	Yes
UUpdates and Configuration	---
Dimension (LxWxH)	112 x 85 x 45 mm
Weight /td>	00.3 kg
Operating Temp. Range /td>	0~40 °C
PPower	DC 12V, 5W

• 1 x DAC-9P
• 1 x AD Switch DC 12V
