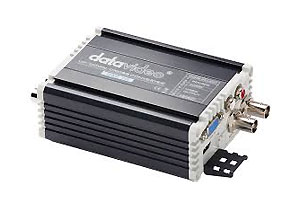

Datavideo DAC-70 Up / Down / Cross Converter

Datavideo DAC-70 Up / Down / Cross Converter

The Ultra Wide Range Scaler for Excellent Compatibility

The DAC-70 supports a multitude of video resolutions ranging from SD to Full HD. If you need to connect two otherwise incomptible video devices together, the Swiss Army Knife of converters has you covered.

Add External Audio or Keep the Embedded Audio

Keep the embedded audio in the stream, or replace the audio using the RCA inputs.

Adjustable brightness, contrast, hue, and saturation settings.

Use the DAC Center Utility to adjust the video output. Simply connect a PC computer to the DAC-70 via USB.

Built-in Distribution Amplifier

The DAC-70 always scales, converts, and outputs video to 3 ports (2x SDI and 1x HDMI)

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Other Web:

Datavideo DAC-70 Up/Down/Cross Converter

Video format/Resolution	1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
Conversion	VGA/HDMI/SDI to HDMI/SDI Multi-format Up/Down/Cross
Video Inputs	1x VGA, 1x HDMI, 1x 3G/HD/SD-SDI (support Level A and Level B)
Loop Through	Yes
Video Outputs	2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B) 1x HDMI
Audio Inputs	2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded
Audio Outputs	SDI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection	----
Audio Gain	----
Supported Video Input Formats	1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
Output Resolutions	1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 525i
Equalizer	Yes
Reclock	Yes
SDI Cable Drive	Yes
Updates and Configuration	Mini USB x 1
Dimension (LxWxH)	112 x 85 x 45 mm
Weight	0.4 kg
Operating Temp. Range	0~40 °C
Power	DC 12V, 6W

• 1 x DAC-70
• 1 x AD Switch DC 12V
• 1 x DIP switch Pin 8 label
