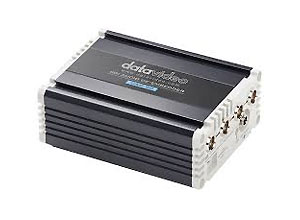

Datavideo DAC-91 SDI Audio Embedder

Datavideo DAC-91 SDI Audio Embedder

Auto Detects SD, HD and 3G Signals

Allow users to embed 2 channels of analogue audio into SDI video signal.

It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.

Auto sets compatible formats to embed external sound sources to SDI output

Embed Audio into an SDI Signal

Supports SMPTE and EBU

Audio level indicator display
Audio level adjustment

4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)

The Audio box also has audio level adjustment by using the built-in DIP switches.

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.


Other Web:

Datavideo DAC-91 SDI Audio Embedder

7

Conversion	Audio Embedder
Video Inputs	3G/HD/SD-SDI x 1
Loop Through	----
Video Outputs	3G/HD/SD-SDI x 2
Audio Inputs	Mini XLR (balanced) x 2 ,RCA (unbalanced) x 2 * Mini XLR1 & RCA1 mixed to CH1 * Mini XLR2 & RCA2 mixed to CH2
Audio Outputs	-----
Audio Format Selection	SMPTE, EBU
Audio Gain	Yes
Supported Video Input Formats	----
Output Resolutions	----
Equalizer	----
Reclock	----
SDI Cable Drive	----
Updates and Configuration	Mini USB x 1
Dimension (LxWxH)	112 x 85 x 45 mm
Weight	0.4 kg
Operating Temp. Range	0~40 °C
Power	DC 12V, 0.5A

• 1 x DAC-91 product
• 1 x AD Switch DC 12V
• 2 x Mini XLR to female XLR cable
