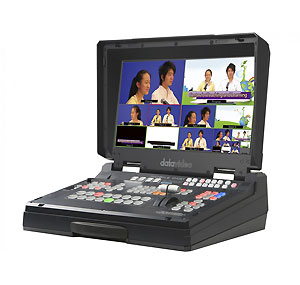

Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio

Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio

Compact Design Suited for Medium-sized Productions

The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs ( SDI x 2 + HDMI x 3).

All-in-one

Switch, stream, and record from a single unit. XLR audio connections allow you to connect master audio from a mixer.

Made for mobility. Made for the web.

The HS-1300 brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design.

And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

Built-in H.264 recorder for SD cards

The HS-1300 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

Streaming to Facebook Live, YouTube, Twitch, and More

The built-in H.264 encoder allows you to stream your show to virtually any CDN like Facebook, YouTube or Twitch in no time. It also supports different bitrate for recording to SD card and streaming
function

User memories

You can save a complex process into a user memory, turning multiple tasks into a one-finger job.

17.3'' LED Backlit Monitor

Built-in Monitor Display. 17.3" HD TFT LED backlit monior with resolution 1600x900 pix.

Other Web:

Datavideo HS-1300 6-Channel Mobile Video Studio

Product Name	6-Channel HD Portable Video Streaming Studio
Video Standard	HD
Video Format	1080i 50/59.94/60Hz 720p 50/59.94/60Hz
Input Routable / Crosspoint	All 6, repeatable
Video Input	4x HD-SDI 2x HDMI
Computer Graphic Interface	2 via HDMI
Down-converted output	N/A
Video output	3x HDMI + 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or multiview
Audio input	2x Balanced XLR
Audio output	1x Stereo headphone
Embedded audio support	2 ch Audio embedded
Audio Delay Calibration	N/A
A+V switching	N/A
USK	2x USK support Chromakey
DSK	2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture	1
Logo Insertion	N/A
Built-in Audio Mixer	selectable audio follow video master gain control
Built-in Monitor Display	17.3? HD TFT LED backlit, 1600×900 pix
Built-in Intercom & Tally	N/A
Streaming Video Encode	H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encode	AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Streaming Protocol	TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP (Publish)
Streaming Control	Web browser UI for configuration and control Socket commands
Recording file system	FAT, exFAT, NTFS
Recording file format	MP4
Recording Setting Control	Web UI for system configuration and control
Dimension (LxWxH)	455 x 355 x 134 mm
Weight	16.3 Lbs (7.4 Kg), Reinforce Plastic Case
Accessory	CB-22H/23H/46/47/60/61/62

• 1 x HS-1300 Product
• 1 x AD Switch DC 12V with AC Cord
