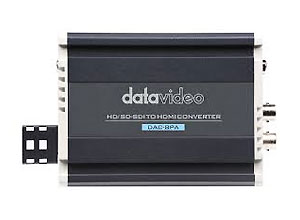

Datavideo DAC-8PA SDI to HDMI Converter

Datavideo DAC-8PA SDI to HDMI Converter

Convert SDI to HDMI with Audio De-Embedding Options

The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output.

Supports 1080p 50/60

Automatische Eingangssignalerkennung und HDMI-Support für High Color (Deep Color).

Supports SDI Loop-Through Output

Simultaneous SDI loop-through with HDMI output

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. The DataVideo DAC-8PA has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Other Web:

Datavideo DAC-8PA SDI to HDMI Converter

Conversion	3G/ HD/SD-SDI para HDMI
Video Inputs	1x 3G/HD/SD-SDI
Loop Through	1
Video Outputs	1x HDMI com Áudio embedded
Audio Inputs	2x SDI Áudio embedded
Audio Outputs	2x RCA (Esteréo)
Audio Format Selection	----
Audio Gain	----
Supported Video Input Formats	1080p (23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i 50 (PAL), 525i 59.94 (NTSC)
Output Resolutions	Combina automaticamente a entrada de vídeo SD, HD e 3G SDI
Equalizer	Slim
Reclock	Slim
SDI Cable Drive	Slim
Updates and Configuration	Mini USB x 1
Dimension (LxWxH)	112 x 85 x 45 mm
Weight	0.3 kg
Operating Temp. Range	0~40 °C
Power	DC 12V, 4W

• 1 x DAC-8PA produto
• 1 x AD Switch DC 12V
