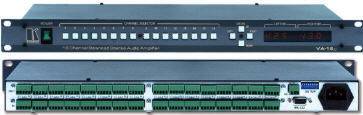

VA-8XL, 8
Channel Balanced Stereo Audio AmplifierP1VP14 VP43XL VP800
|
|
|
|
|
The VA-8xl and
VA-16xl are high performance 8 and 16 channel stereo input volume
controllers for balanced audio signals on terminal block
connectors. The volume of each L & R stereo channel can be
adjusted independently of the other stereo channel.
Typical
Applications:
-
Large presentation
audio level control.
-
Audio broadcast and
editing studios.
-
PA remote audio
level control.
|
|
|
FEATURES
|
|
-
S/N Ratio - >
90dB.
-
Control - Front
panel, RS-232 and RS-485.
-
Volume - –
95dB to +31dB in 0.5dB steps. L& R channels may be controlled
separately or together
-
Inputs - 8 balanced
stereo (VA-8xl) and 16 balanced stereo (VA-16xl).
-
Outputs - 8 balanced
stereo (VA-8xl) and 16 balanced stereo (VA-16xl).
-
Standard 19”
Rack Mount Size - 1R
|
|
|
SPECIFICATIONS
|
|
| Inputs: |
8 balanced stereo audio + 4dBm/30kΩ on detachable
terminal blocks. |
|
|
Outputs : |
8 balanced stereo audio +
4dBm/50Ω on detachable terminal blocks. |
|
| Gain : |
- 95dB to + 31dB. |
|
|
Max. Output Level: |
> 20dBm balanced (THD + N <
0.01). |
|
| Bandwidth (-3dB): |
20Hz to 40kHz. |
|
|
Noise Floor: |
< 90dB (Gain
0dB). |
|
| THD + Noise: |
0.006% @ 4dBm 1kHz. |
|
|
Control: |
Front pushbuttons, RS-232, and
RS-485. |
|
| Indicators: |
Gain in dB for left and right channels. |
|
|
Power Source: |
90 - 240V 13VA. |
|
| Dimensions: |
19-inch (W), 7-inch (D) 1U (H)
rack-mountable. |
|
|
Weight: |
3.5kg (7.8lbs)
approx. |
|
| Accessories: |
Power cord, Null modem adapter, Windows®-based control
software. |
|
| |
|
|
