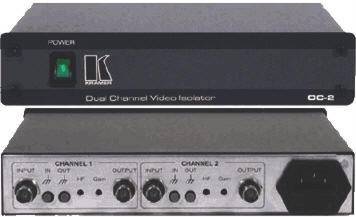

OC-2, Dual
Channel Video Isolator OC2
|
|
|
|
|
The OC-2 is a video
high performance optical isolator for video or sync signals. It
provides complete isolation between devices thus eliminating video
hum, ground loops, and DC offsets which can degrade picture
quality.
Typical
Applications:
-
Large display
systems with sources and monitors/projectors on different power
circuits.
-
Video field
production sessions.
-
Hospital and other
critical applications requiring complete isolation.
-
Eliminate Video hum
bars and noise.
|
|
|
FEATURES
|
|
-
Bandwidth - 20MHz (-
3dB).
-
Floating Ground
Selection - Input, output, both, or none.
-
Channels -
2.
-
Opto-Isolator
Circuitry - Extremely linear response and wide frequency range
compared to traditional transformer based units
-
Level (Gain) and EQ
(Peaking) Controls
-
Desktop Size -
Compact size. Two units can be rack mounted side-by-side in a 1U
rack space with the optional RK-80 adapter.
|
|
|
SPECIFICATIONS
|
|
| Input: |
2 Composite Video, 1Vpp/75Ω on BNC
connectors. |
|
|
Output: |
2 Composite Video, 1Vpp/75Ω on
BNC connectors. |
|
| S/N Ratio: |
69 dB. |
|
|
Bandwidth (-3dB): |
20MHz. |
|
| Power Source: |
230 VAC, 50/60 Hz, (115VAC, U.S.A.) 2.3 VA. |
|
|
Dimensions: |
22cm x 18cm x 4.5cm (8.7” x
7” x 1.7”, W, D, H.). |
|
| Weight: |
1.3 kg. (2.9 lbs.)
approx. |
|
|
Accessories: |
Power cord. |
|
| Options: |
RK-80 19” rack adapter. |
|
| |
|
|
