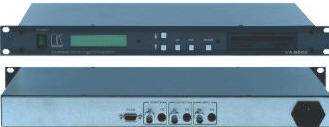

VA-2002, Video Logo Generator and Inserter
VA2002A16-XL
|
|
|
|
|
The VA-2002 is a
broadcast quality logo generator and inserter for composite video
and s-Video (Y/C) signals. With the included Windows® - based
software, a logo can be sized, positioned and inserted into a video
signal with variable transparency.
Typical
Applications:
-
Video broadcast
studios for logo insertion in on-air broadcasting
-
Video production
facilities, for producer or client logo insertion.
-
Points of sale,
shops, security, hospitals, universities, hotels, CCTV and other
applications, which need source identification.
|
|
|
FEATURES
|
|
-
Bandwidth - 5.5MHz
(- 3dB).
-
Inputs - Floppy
drive to upload logos.
-
Logo Storage - Up to
9 logos in non-volatile memory.
-
Dual Outputs -
Composite and s-Video simultaneously.
-
Control - Front
panel, RS-232 (includeds dedicated Windows® - based
software).
-
Logo Creation
Software Included - Windows® - based software to size,
position, select transparency and upload logos to VA-
2002
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
| Input: |
1 CV, 1Vpp/75Ω or 1 YC,
“Y”=1Vpp/75Ω, “C”=0.3Vpp/75Ω on
a 4p connectror.1 Vpp/75Ω CV or
“Y”. |
|
|
Output: |
OUTPUTS:2 of each: CV,
1Vpp/75Ω and YC, “Y”=1Vpp/75Ω,
“C”=0.3Vpp/75Ω on a 4p connector. |
|
| Max. Output Level: |
1 Vpp/75Ω CV or “Y”. |
|
|
Bandwidth (-3dB): |
5.5 MHz, CV or
“Y”. |
|
| Diff. Gain: |
2.7%. |
|
|
Diff. Phase: |
0.6 deg. |
|
| K-Factor: |
1.5%. |
|
|
S/N Ratio: |
63 dB. |
|
| Controls: |
5 front panel buttons, RS-232. |
|
|
Coupling: |
AC. |
|
| Power Source: |
100-230 VAC, 50/60 Hz, 12VA max. |
|
|
Dimension: |
19-inch (W), 8.6-inch (D) 1U (H)
rack-mountable. |
|
| Weight: |
3.2 kg. (7.1 lbs.)approx. |
|
|
Accessories: |
Power cord, VA-2002 CD-ROM
(including a Windows® based control program, the VA-2002 Logo
Finalizer and Upload programm). |
|
| |
|
|
|
|
