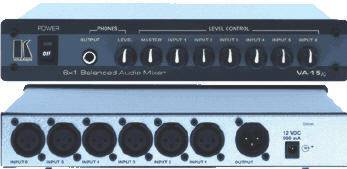

VA-15XL, 6x1 Balanced Audio Mixer VA15XL VA15-XL
|
|
|
|
|
The VA-15xl is a 6
channel mixer for mono balanced audio signals on XLR connectors. It
inputs 6 channels of any combination of line or microphone level
audio signals to a balanced mixed audio and a headphone signal
output.
Typical
Applications:
-
Live stage and
studio audio mixing.
-
Presentation systems
and press conferences.
-
Post production in
video/audio studios.
-
Rental and
staging.
|
|
|
FEATURES
|
|
-
S/N Ratio - 76dB
(unweighted) and 72dB (microphone).
-
Inputs - 6 line or
microphone level (individually selectable).
-
Phantom Power - 48V
DC on each input (individually selectable).
-
Level (Gain) Control
- 6 for each input, master and headphone.
-
Desktop Size -
Compact size. Can be rack mounted in a 1U rack space with the
optional RK-MEDN adapter
|
|
|
SPECIFICATIONS
|
|
| Input: |
6 audio, with selectable line (10kΩ) or Mic (4
kΩ with phantom voltage),balanced, on female XLR
connectors. |
|
|
Output: |
1 audio, 50Ω balanced on a
male XLR connector.One headphone output, 250mW max into
8Ω. |
|
| Max. Output Level: |
Mix out: 26Vpp, Phones out: 4Vpp. |
|
|
Bandwidth (-3dB): |
20kHz. |
|
| S/N Ratio: |
76 dB unweighted (line), 72dB (Mic). |
|
|
Phantom Voltage: |
+48V typ. |
|
| Crosstalk: |
- 64 dB@20kHz, all hostile. |
|
|
Controls: |
Line (each): - 54to + 6dB, Mic
(each): -54to +52 dB; Master: - 79 to + 6dB (line level inputs);
Phones: - 77 to +11dB |
|
| Coupling: |
AC (inputs), DC (mixed output). |
|
|
Audio THD + Noise: |
0.021%. |
|
| Audio 2nd Harmonic: |
0.002%. |
|
|
Power Source: |
12 VDC, 500mA |
|
| Dimensions: |
24.5cm x 18cm x 4.4cm (9.6” x 7” x 1.7”,
W, D, H). |
|
|
Weight: |
1.4 kg. (3.1 lbs.)
Approx. |
|
| Accessories: |
Power cord, TP to balanced audio adapter. |
|
|
Options: |
RK-MEDN rack adapter holds one unit
in two vertical spaces. |
|
| |
|
|
