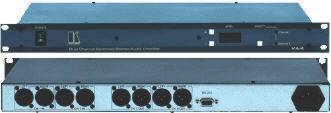

VA-4, Dual Channel Stereo Audio Controller
VA4
|
|
|
|
|
The VA-4 is a volume
controller for two channels of balanced stereo audio signals on XLR
connectors. The volume of each stereo channel can be adjusted
independently of the other stereo channel.
Typical
Applications:
|
|
|
FEATURES
|
|
-
S/N Ratio - 73.5dB
(unweighted).
-
Control - Front
panel or RS-232.
-
Volume - –
40dB to + 20dB in 0.245dB steps.
-
Inputs - Channel 1
(stereo) and Channel 2 (stereo).
-
Outputs - Channel 1
(stereo) and Channel 2 (stereo).
-
Standard 19”
Rack Mount - 1U
|
|
|
SPECIFICATIONS
|
|
| Input: |
2 balanced stereo, 2.9Vpp on female XLR
connectors. |
|
|
Output: |
2 balanced stereo, on male XLR
connectors. |
|
| Max. Output Level: |
14 Vpp for GAIN =1; 26 Vpp for GAIN =10.8
(maximum). |
|
|
Bandwidth (-3dB): |
100 kHz. |
|
| S/N Ratio: |
73.5dB (unweighted). |
|
|
Crosstalk (All
Hostile): |
-74dB @ 1kHz; -68dB @
20kHz. |
|
| Controls: |
Level control and channel selection, impedance selection.
Gain Range: –40dB to +20dB in steps of
0.245dB. |
|
|
Coupling: |
AC at output |
|
| Audio THD + Noise: |
0.03% @ 1kHz (0.026%). |
|
|
Audio 2nd Harmonic: |
0.008% @ 1kHz. |
|
| Power Source: |
100 - 230 VAC 50/60 Hz 4.6VA. |
|
|
Dimensions: |
19-inch (W), 7-inch (D), 1U
(H). |
|
| Weight: |
2.5 kg. (5.5 lbs.) approx. |
|
|
Accessories: |
Power cord, Windows® - based
control software. Null modem adapter. |
|
| |
|
|
