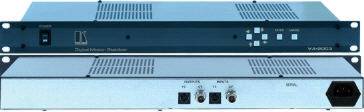

VA-2003, Video Image Stabilizer VA2003
|
|
|
|
|
The VA-2003 is a
high performance digital motion stabilizer for composite video and
s-Video (Y/C) signals. It stabilizes a video signal that is subject
to camera jitter caused by wind or other unwanted motion.
Typical
Applications:
-
Removing the
unsteadiness in images obtained from security cameras mounted on
high buildings, caused by strong winds.
-
Stabilizing a live
filming/broadcasting image from a vehicle-mounted or hand held
camera, whose quality would otherwise be impaired by
vibration
|
|
|
FEATURES
|
|
-
Bandwidth - 2.3MHz
(- 3dB) PAL.
-
Multi-Standard -
NTSC & PAL.
-
Control - Front
Panel and OSD (on screen display).
-
Real Time DSP
Processing - The input signal is analyzed and the effects of
unintended motion, perhaps due to windy conditions or vibrations
from nearby heavy equipment or air conditioning units, are removed
and the image is stabilized in real time, utilizing DSP processing
techniques.
-
Standard 19”
Rack Mount Size - 1U
|
|
|
SPECIFICATIONS
|
|
| Input: |
1 CV, 1Vpp/75Ω and 1 YC,
“Y”=1Vpp/75Ω,
“C”=0.3Vpp/75Ω. |
|
|
Output: |
1 CV, 1Vpp/75Ω and 1 YC,
“Y”=1Vpp/75Ω,
“C”=0.3Vpp/75Ω. |
|
| Bandwidth (-3dB): |
2.3 MHz (PAL). |
|
|
Diff Gain: |
2.0%. |
|
| Diff. Phase: |
1.7 deg. |
|
|
K-Factor: |
4.6%. |
|
| S/N Ratio: |
60dB. |
|
|
Crosstalk: |
-80dB. |
|
| Control: |
6 front panel buttons. |
|
|
Coupling: |
DC at Output. |
|
| Power Source: |
100-240 VAC, 50/60 Hz, 25VA max. |
|
|
Dimensions: |
19-inch (W), 7-inch (D) 1U (H)
rack-mountable. |
|
| Weight: |
2.1 kg. (6 lbs.). |
|
|
Accessories: |
Power cord. |
|
| |
|
|
|
|
