PIP-200,

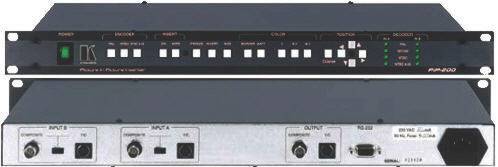

Picture-in-Picture PIP Inserter PIP200
|
|
|
|
|
The PIP-200 is a
high performance picture-in-picture inserter for composite video
and s-Video (Y/C) signals. Either of the 2 input signals can be
sized, positioned and inserted into the other input signal.
Typical
Applications:
-
Video production
studios for camera monitoring.
-
Teleconferencing
using one screen.
-
Satellite image
monitoring.
-
CCTV, home theater,
and satellite receiver monitoring.
|
|
|
FEATURES
|
|
-
Multi-Standard &
Multi-Format Operation with Format Conversion - Input PAL, SECAM
& NTSC and Output PAL & NTSC. A PAL image can be inserted
into an NTSC image and vise versa. Either input can be composite
video, s-Video, full screen or the inserted picture.
-
Control - Front
panel and RS-232 (Windows® - based control software is
included).
-
Input -
Bi-directional transcoding.
-
Output - Composite
and s-Video (Y/C) simultaneously.
-
PIP Image - Variable
position and border color and freeze frame at 1/4, 1/9 1/16, or
1/36 screen size.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
| Input: |
2 video, each composite and YC, 1Vpp/75Ω composite
(BNC),1Vpp/75Ω (Y), 0.3 Vpp/75Ω (C) on 4p
connectors. |
|
|
Output: |
1 composite video 1 Vpp/75Ω
(Composite), 1 YC 0.3Vpp/75Ω(C) on a 4p
connector. |
|
| Input Standards: |
PAL, NTSC (both), SECAM. |
|
|
Output Standards: |
PAL, NTSC (both). |
|
| Video Crosstalk: |
-62dB (SYNC), - 37dB (C). |
|
|
Inserted Size: |
1/4, 1/9,1/16,
1/36th. |
|
| Inserted Resolution: |
6 bits. |
|
|
Control: |
Front panel keys,
RS-232. |
|
| Standard Detection: |
Automatic. |
|
|
Power Source: |
230 VAC, 50/60 Hz (115VAC, U.S.A.)
18.4 VA. |
|
| Dimensions: |
19 inch (W), 7 inch (D) 1U (H) rack
mountable. |
|
|
Weight: |
2.8 kg. (6.2 lbs.)
approx. |
|
| Accessories: |
Power cord, Windows® - based
control software, Null modem adapter. |
|
| |
|
|
