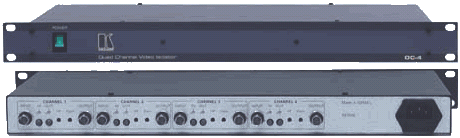

OC-4, 4 Channel Video Isolator OC4
|
|
|
|
|
The OC-4 is a high
performance optical isolator for video or sync signals. It provides
complete isolation between devices thus eliminating video hum,
ground loops, and DC offsets which can degrade picture quality.
Typical
Applications:
-
Large display
systems with sources and monitors/projectors on different power
circuits.
-
Video field
production sessions.
-
Hospital and other
critical applications requiring complete isolation.
-
Eliminate Video hum
bars and noise.
|
|
|
FEATURES
|
|
-
Bandwidth - 20MHz (-
3dB).
-
Channels -
4.
-
Opto-Isolator
Circuitry - Extremely linear response and wide frequency range
compared to traditional transformer based units.
-
Level (Gain) and EQ
(Peaking) Controls.
-
Floating Ground
Selection - Input, output, both, or none.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
| Input: |
4 video, 1Vpp/75Ω on BNC connectors. |
|
|
Output: |
4 video, 1Vpp/75Ω on BNC
connectors. |
|
| S/N Ratio: |
69 dB. |
|
|
Bandwidth (-3dB): |
20MHz. |
|
| Power Source: |
230 VAC, 50/60 Hz, (115VAC, U.S.A.) |
|
|
Dimensions: |
19 inch (W), 7 inch (D) 1U (H) rack
mountable. |
|
| Weight: |
3.5 kg. (7.8 lbs.)
approx. |
|
|
Accessories: |
Power cord. |
|
| |
|
|
