Miller System CompassX 8 Solo 75 2-Stage Carbonfibre (3744)

Miller 3744
Miller CompassX 8 Solo 75 2 Stage Carbonfibre (3744)

Miller CompassX 8 Solo 75 2-Stage Carbonfibre System

Product Code: 3744

Miller CompassX 8 Solo 75 2-Stage Carbonfibre (3744)


Features

  • Compact, uncompromised performance.
  • 75mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4bs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 5+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage rapid leg lock extension.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.

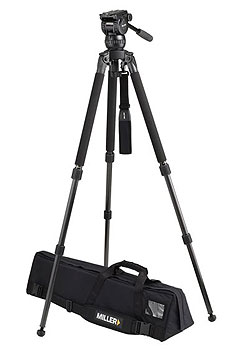

The 3744 Compassx 8 (CX8) Solo 75 2-stage (carbon fibre) tripod system combines with the innovative lightweight 1501 Solo CF tripod and CX8 fluid head. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.

The CX8 is matched with the 2-stage Solo (carbon fibre) tripod resulting in a working height range of 414-1794mm (16.3-70.6"),and offering rapid action twist locks, versatility of the Solo leg angles with the added benefit of carbon fibre construction.

Payload Range 0-12.0kg (0-26.4lbs)
Weight 5.4kg (11.9lbs)
Height Range 414-1794mm (16.3-70.6")
Transport Length 874mm (34.4")
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø75mm (2.9") ball levelling
Height Above Bowl 167mm (6.6")
lluminated Controls  Bubble level
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension  2-stage telescopic
Lock Type Concentric rapid lock
Leg Material Carbonfibre

- 1093 CX8 fluid head
- 1501 Solo 75 2-stage tripod (Carbon fibre)
- 679 Pan handle - fixed with clamp
- 1520 Solo shoulder strap (Aircell)
- 3514 Softcase 2-stage
