Miller System CompassX 6 Solo 75 3-Stage Carbonfibre (3730)

Miller 3730
Miller CompassX 6 Solo 75 3 Stage Carbon Fibre (3730)

Miller CompassX 6 Solo 75 3-Stage Carbonfibre System

Product Code: 3730

Miller CompassX 6 Solo 75 3-Stage Carbonfibre (3730)


Features

  • Powerful, light and multifunctional.
  • 75mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4bs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 3-stage rapid leg lock extension.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.

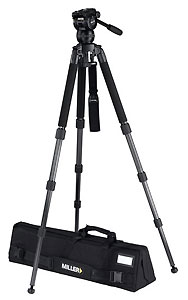

The 3730 Compassx 6 (CX6) Solo 75 3-stage (carbon fibre) tripod system consists of the CX6 fluid head and the ultra-light, rigid Solo 75 3-stage (carbon fibre) tripod.

Designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.

The CX6 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.

The CX6 is matched with the 3 stage Solo (carbon fibre) tripod that results in a range topping height range of 390-2040mm (15.4-80.3"), rapid action twist locks on independent stages and the versatility to set up system across all terrains.

Payload Range 0-12.0kg (0-26.4lbs)
Weight 5.8kg (12.8lbs)
Height Range 390-2040mm (15.4-80.3")
Transport Length 828mm (32.6")
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø75mm (2.9") ball levelling
Height Above Bowl 167mm (6.6")
lluminated Controls  Bubble level
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension  3-stage telescopic
Lock Type Concentric Rapid Lock
Leg Material Carbon Fibre

- 1092 CX6 fluid head
- 2001 Solo 75 3-stage tripod (Carbon Fibre)
- 679 Pan handle - fixed with clamp
- 1520 Solo shoulder strap (Aircell)
- 3514 Softcase 2-stage
