Miller System CompassX 10 Toggle 2-Stage Alloy (3753)

Miller 3753
Miller CompassX Toggle 2-Stage Alloy (3753)

Miller CompassX 10 Toggle 2-Stage Alloy System

Product Code: 3753

Miller CompassX 10 Toggle 2-Stage Alloy (3753)


Features

  • Affordable, Stable, Robust.
  • 100mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4bs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 5+0 selectable positions of fluid pan and tilt drag.
  • 2-stage fast toggle adjustment legs.
  • Durable black anodised alloy tubing.
  • Comes with on ground spreader.
  • Comes with2-stage tripod bag.
  • 3 year warranty.

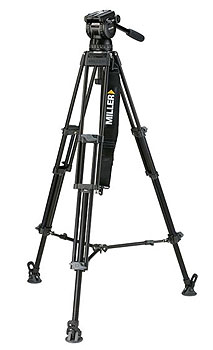

The 3753 Compassx 10 (CX10) Toggle 2-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

Whether the job requires a mirrorless camera, DSLR, cine-rig or a broadcast camera, the CX10 is capable of balancing from 0kg to 12kg. It features advanced precision fluid drag, fast set-up and professional performance with the flexibility and rigidness of the 402G alloy Toggle tripod.

CX10 employs CB PlusTM technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The CX10 is matched with the 2-stage Toggle (alloy) tripod and on-ground spreader to provide a large height range 543-1713mm (21.4-67.4"), positive leg toggle locks and quick pack down.

Payload Range 0-12.0kg (0-26.4lbs)
Weight 6.8kg (14.9lbs)
Height Range 543-1713mm (21.4-67.4")
Transport Length 821mm (32.3")
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø100mm (3.9") ball levelling
Height Above Bowl 150mm (6.0")
lluminated Controls  Bubble level
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension  2-stage
Lock Type Toggle
Leg Material Alloy

- 1096 CX10 fluid head
- 402G Toggle 2-stage tripod (alloy)
- 411 On ground spreader
- 679 Pan handle - fixed with clamp
- 554 Shoulder strap (padded)
- 3514 Softcase 2-stage
