Yamaha POCKETRAK W24 Recorder
|
|
Product Code:POCKETRAKW24
|
|
Compact and lightweight, the W24 features a large dual microphone assembly for outstanding 24bit/96kHz digital sound quality.
What's more, recording is more convenient than ever thanks to the supplied wireless remote control. It's the perfect choice for effortless recording in the studio, on the stage or out in the field.
|
|
|
Start, Stop and Replay from Anywhere
The wireless remote control makes recording practice sessions much more convenient. You can position the W24 at the optimum recording location and operate it from your playing position, so you can record and listen
over and over without having to move. |
| |
|
 |
38 Hours of PCM Recording with One Battery
The W24 far outdistances the competition with up to 38 hours of PCM recording and 56 hours of MP3 recording from a single alkaline AA battery. Now you can concentrate on the music, not the battery. |
| |
|
High Capacity Memory with microSD Cards
The W24 has a built-in 2GB flash memory, providing 3 hours of PCM recording time (MP3: 13.5 hours). Using the optional 2GB microSD memory card doubles this amount. You can also use higher capacity cards. |
| |
|

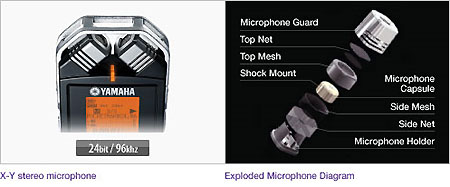

24bit/96kHz Recording With Highest Quality X-Y Stereo Microphone
The microphone on a pocket recorder is extremely important in determining sound quality, and the sensitivity and coverage of this X-Y dual mic assembly are truly superior. It takes full advantage of the
recorder's 24bit/96kHz resolution.
|
| |
|
Peak Limiter for Optimum Music Recording
When bands or orchestras hit high volume peaks, recording quality can suffer. The W24's peak limiter instantly detects these high levels to prevent overload and distortion. Yamaha worked with musicians in studios
to ensure that the limiter function is optimized for music recording. |
| |
|
|
|
Memorize Various Recording Settings
You can use the Scene function to memorize the settings for a variety of
recording situations, such as choir practice or interviews, and assign names to them. Then each time you want to use a certain setting, you can recall it instantly. |
| |
|
 |
Onboard Speaker
The built-in speaker provides a quick and convenient way to check your recordings.
|
| |
|
Ready When You Are
When the group is ready to start, no one wants to wait for the recorder. With the W24, recording can begin just 4.5 seconds after pressing the power button. |
| |
|

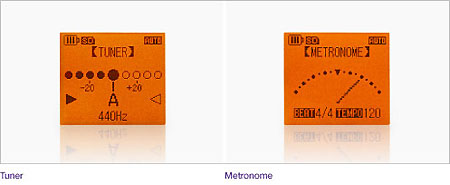

Tuner and Metronome
Tuner and metronome are built-in for added convenience.
 |
| |
|
 |
Cubase AI 5 Software Greatly Expands Your Recording and Editing Capabilities.
Cut out what you don't want, adjust the sound the way you want it. Using Cubase AI 5 software, it's easy to edit POCKETRAK recordings on your PC or Mac.
Both the W24 and C24 let you easily upload recordings to your PC via USB, for comprehensive editing with Cubase software. Previous editing with Cubase can also be retained, allowing you to refine the process as
many times as necessary. |
|
| Hardware |
POCKETRAK W24 |
| Body |
Dimension (W x H x D) |
W: 1 13/16 inch (46.5 mm) x H: 5 1/16 inch (129.5 mm) x D: 11/16 inch (17.5 mm) |
| Weight |
3.25 oz (92 g) including battery |
| Memory |
Capacity |
2 GB (External memory: microSD/microSDHC) |
| Battery |
Available Battery |
AA alkaline battery x 1 |
| Recording Battery Life |
AA Alkaline |
MP3: 56 h, PCM: 38 h |
| Playback Battery Life |
AA Alkaline |
MP3: 70 h, PCM: 45 h (Use headphone) |
| LCD |
LCD Type |
Dot matrix, backlit display |
| Language |
English |
| Others |
Internal Stereo Microphone, Internal Speaker, Headphone Jack (Stereo mini: 3.5mm (dia.) x 1), Ext. Stereo Mic
In Jack (Stereo mini: 3.5mm (dia.), Line In Jack switchable x 1), microSD card slot x 1 |
| Accessories |
POCKETRAK W24 |
| Accessories |
Alkaline AA battery, Wireless remote controller, Windscreen, Microphone stand adaptor, USB cable, Cubase AI 5
DVD-ROM, Owner's Manual |
| Recording |
POCKETRAK W24 |
| Recording Format |
Linear PCM, MP3 |
| Recording Configuration |
Internal Stereo Microphone, Ext. Stereo Mic In, Line In (Automatic song divide available) |
| Recording time/Frequency Response/Sampling Frequency/Bit Rate |
PCM stereo |
(24bit/ 96 kHz) 55m(16bit/44.1 kHz) 3h 00m |
| MP3 stereo |
(320 kbps)13h 30m(128 kbps)34h 00m(64 kbps)68h 00m |
| Other Functions |
Voice Automatic Recording System, ALC (Auto Level Control) ON/OFF, Mic Sensitivity Select (ALC ON: 2 steps, ALC OFF:
80 steps), Recording Peak Limiter, 5-band Graic Equalizer (8 presets/User), High Pass Filter, Timer rec, Self Timer, Rec monitor, File delete confirmation, Scene Memory |
| Playback |
POCKETRAK W24 |
| Playback format |
MP3, WMA, WAV (WAV file playback is own recording ile only) |
| Repeat |
ONE, ALL, Random, A-B repeat |
| Musical function |
5-band EQ (Presets: Flat, Bass1, Bass2, Pop, Rock, Jazz, User) |
| Playback speed |
Slow PB (50 - 100 %), Normal (100 %), Fast PB (100 - 200 %)*Not available on PCM |
| Other Functions |
Play list Playback, Skip Search, File edit (divide, fade in/ out), Tuner, Metronome |
| Computer connection |
POCKETRAK W24 |
| Data transfer |
Connection |
USB cable (Bundled) |
| Transfer speed |
USB 2.0 High Speed, 1500 kbps |
| Connection |
Mass storage class |
Yes |
|
|
|
|
|
