VS-2016, 16x1

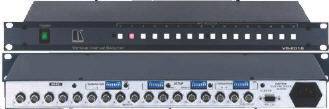

Vertical Interval Switcher VS2016
|
|
|
|
|
The VS-2016 is a
high performance switcher for composite video signals. Switching
during the vertical interval ensures glitch-free switching with
genlocked sources.
Typical
Applications:
-
Video production
studios.
-
Live broadcast and
presentation systems requiring switching between cameras in
real-time
-
CCTV, home theater,
and rental/staging applications
|
|
|
FEATURES
|
|
-
Bandwidth - 80MHz (-
3dB).
-
Expandable - Cascade
multiple units.
-
Vertical Interval
Switching.
-
Control - Front
panel, RS-232 (K-Router™ Windows® - based software is
included) switching, & rear panel set up
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
16 composite/component video,
1Vpp/75Ω, on BNC connectors |
|
|
OUTPUTS: |
1 composite/component video,
1Vpp/75Ω on a BNC connector |
|
|
BANDWIDTH
(VIDEO)(-3dB): |
80MHz. |
|
|
DIFF. GAIN: |
0.07 %. |
|
|
DIFF. PHASE: |
0.28 Deg. |
|
|
K-FACTOR: |
<0.05%. |
|
|
LUMA S/N: |
74dB. |
|
|
CROSSTALK: |
-48dB (Chroma). |
|
|
CONTROL: |
16 front-panel touch switches,
RS-232. |
|
|
OUTPUT COUPLING: |
DC. |
|
|
SWITCHING: |
During vertical
interval. |
|
|
POWER SOURCE: |
230 VAC 50/60 Hz (115VAC U.S.A.) 8.7
VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.8kg. (6.2 lbs.)
approx. |
|
|
ACCESSORIES:
|
Power cord, Windows®
- based control software, Null modem adapter. |
|
|
|
|
|
