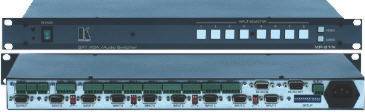

Kramer VP-81N, 8x1
VGA/XGA/Audio Switcher
|
|
|
|
|
The VP-81N, VP-161,
and VP-321 are high performance switchers for computer graphics
video signals, with resolutions ranging from VGA through UXGA and
higher, and balanced stereo audio signals. They will switch any one
of 8, 16, and 32 inputs to a single output.
Typical
Applications:
-
Any professional
display system requiring fast input selection.
-
Remote monitoring of
computer activity.
-
Multimedia and
presentation source selection.
|
|
|
FEATURES
|
|
-
High Bandwidth -
VP-81N: 500MHz (-3db), VP-161: 300MHz (-3db), and VP-321: 180MHz
(-3db).
-
HDTV
Compatible.
-
Control - Front
Panel, RS-232 (K-Router™ Windows® - based software
included), & RS- 485, contact closure & IR remote
(included).
-
ID Bit Control -
each input.
-
Audio Breakaway
Switching.
-
Standard 19”
Rack Mount Size - VP-81N: 1U, VP-161: 2U , & VP-321:
4U
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
8 analog red, green, blue signals -
0.7 Vpp/75Ω, H & V syncs, TTL level on HD15F connectors. 8
balanced audio stereo signals, + 4dBm typ. on detachable terminal
blocks. |
|
|
OUTPUTS: |
1 analog red, green, blue signals -
0.7 Vpp/75Ω, H & V syncs, TTL level on an HD15F
connectors. 1 balanced audio stereo signal, + 4dBm typ. on
detachable terminal block. |
|
|
VIDEO
BANDWIDTH(-3dB): |
>500MHz. |
|
|
AUDIO
BANDWIDTH(-3dB): |
100 kHz. |
|
|
AUDIO THD LN: |
0.023%. |
|
|
AUDIO CROSSTALK: |
-65dB@1kHz;
-58.8dB@20kHz. |
|
|
AUDIO S/N RATIO: |
83.44Db, Unweighted. |
|
|
2nd HARMONIC: |
0.002%. |
|
|
DIFF. GAIN: |
0.04%. |
|
|
DIFF. PHASE: |
0.02 Deg. |
|
|
K-FACTOR: |
0.05%. |
|
|
VIDEO S/N RATIO: |
73dB. |
|
|
VIDEO CROSSTALK: |
-63dB@ 5MHz, all
hostile |
|
|
CONTROL: |
8 selector switches; RS-232, RS-
485; IR remote control;.detachable terminal blocks for remote
dry-contact switches. ID bit control. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115VAC, U.S.A.)
12VA max. |
|
|
DIMENSIONS: |
19-inch (W), 7-inch (D) 1U (H)
rack-mountable. |
|
|
WEIGHT: |
2.7 kg (6 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Null modem adapter,
Windows®-based control software. |
|
|
|
|
|
|
|
