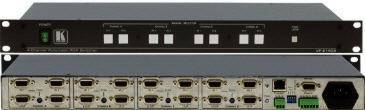

VP-214DS, 4
Channel 2x1 Computer Graphics Standby
Switcher VP214DS VP214-DS
|
|
|
|
|
The VP-214DS is a
machine with four computer graphics switchers in one box. When
configured as a standby switcher, each 2x1 switcher will switch to
the secondary input upon loss of the primary input.
Typical
Applications:
-
Presentation systems
requiring automatic selection of the input sources.
-
Live applications to
prevent systems from operating without a valid
input.
-
Easy switching to an
emergency channel for information systems.
-
Logo and advertising
during dead-time on presentation monitors and
billboards.
|
|
|
FEATURES
|
|
-
High Bandwidth -
320MHz (- 3dB).
-
Looping Inputs - 4
(one for each switcher).
-
Selectable Input
Signal Termination - 4 (one for each switcher).
-
Control - Automatic,
RS-232, RS-485, contact closure, and Ethernet.
-
ID Bit Control - 8
(one for each input).
-
ID Bit Control - 8
(one for each input).
-
Automatic Standby
Switching - It will switch from the secondary input to the primary
input when a primary signal is detected.
-
Primary Input -
Selectable.
-
Front Panel
Lockout.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
4 x (2 XGA + loop) on HD15F
connectors |
|
|
OUTPUTS: |
4 XGA on HD15F
connectors |
|
|
MAX. OUTPUT LEVEL: |
1.5Vpp. |
|
|
BANDWIDTH (-3dB): |
320MHz. |
|
|
DIFF. GAIN: |
0.04%. |
|
|
DIFF. PHASE: |
0.07 Deg. |
|
|
K-FACTOR: |
< 0.05%. |
|
|
S/N RATIO: |
73dB. |
|
|
CROSSTALK (all
hostile): |
– 57dB @ 5MHz, – 42dB @
100MHz |
|
|
CONTROLS: |
4 sets of front panel manual
selector touch switches, RS-232, RS-485, and Ethernet, input
termination, panel lock. |
|
|
POWER SOURCE: |
230VAC, 50/60 Hz (115 VAC, USA)
12VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.7 kg (6 lbs.)
approx. |
|
|
ACCESSORIES:
|
Power cord, Null modem
adapter. |
|
|
|
|
|
