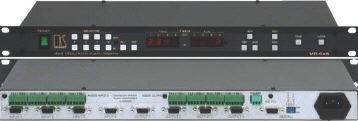

VP-4x4, 4x4
VGA/XGA/Audio Matrix Switcher VP4X4
|
|
|
|
|
The VP-4x4 is a high
performance matrix switcher for computer graphics video signals,
with resolutions ranging from VGA through UXGA and higher, and
balanced stereo audio signals. It can route any or all inputs to
any or all outputs simultaneously.
Typical
Applications:
-
Any professional
display system requiring a true 4x4-matrix
operation.
-
Multimedia and
presentation source and acceptor selection.
-
Remote monitoring of
computer activity in schools and businesses
-
Rugged enclosure and
standard AC power cable are ideal for rental/staging
applications.
|
|
|
FEATURES
|
|
-
High Bandwidth -
440MHz (- 3dB) fully loaded.
-
HDTV
Compatible.
-
Control - Front
panel, RS-232 (K-Router™ Windows® - based Software is
included), & RS-485
-
Front Panel Control
Lockout.
-
Take Button -
Execute multiple switches all at once.
-
Memory Locations -
Store multiple switches as presets to be recalled and executed when
needed
-
Audio Breakaway
Switching.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
4 analog red, green, blue signals -
0.7 Vpp/75Ω, H & V syncs, TTL level on HD15F connectors.
4 balanced audio stereo signals, + 4dBm/33K typical, 21 Vpp max. on
detachable terminal blocks |
|
|
OUTPUTS: |
4 analog red, green, blue signals -
0.7 Vpp/75Ω, H & V syncs, TTL level on HD15F connectors.
4 balanced audio stereo signals, + 4dBm/50Ω typical, 21 Vpp
max. on detachable terminal blocks |
|
|
VIDEO BANDWIDTH
(-3dB): |
440MHz. |
|
|
AUDIO BANDWIDTH
(-3dB): |
100kHz. |
|
|
DIFF. GAIN: |
DIFF. GAIN: |
|
|
DIFF. PHASE: |
0.13 Deg. |
|
|
K-FACTOR: |
0.05%. |
|
|
VIDEO S/N RATIO: |
73dB. |
|
|
AUDIO S/N RATIO: |
77dB unweighted. |
|
|
VIDEO CROSSTALK: |
-55dB. |
|
|
CONTROL: |
Touch switches, RS-232, RS-
485. |
|
|
MAX VIDEO OUT: |
2.6 Vpp. |
|
|
MAX AUDIO OUT: |
21 Vpp. |
|
|
AUDIO CROSSTALK @
20kH |
-81.1 dB. |
|
|
AUDIO THD + NOISE: |
0.031%. |
|
|
2nd HARMONIC: |
0.02%. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115 VAC,
U.S.A.) 12 VA max. |
|
|
DIMENSIONS: |
19-inch (W), 7-inch(D) 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.7kg. (6 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Null modem adapter,
Windows®-based control software. |
|
|
|
|
|
